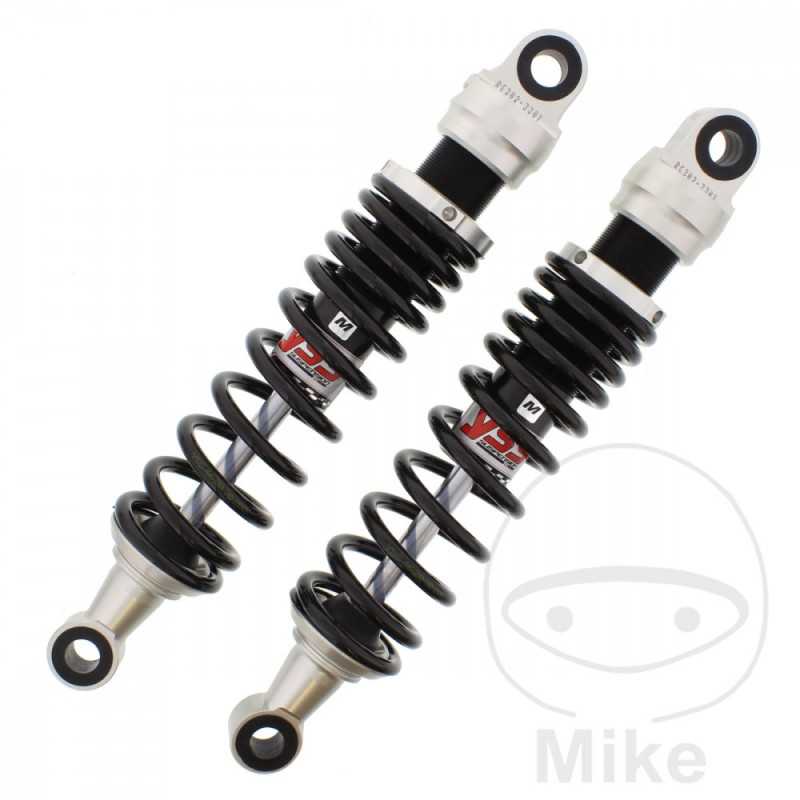

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.16

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki GPZ 305 B Belt Drive 27/17 CV, 20/13 kw 2cil. EX305B 2 Bastidores: EX305B henceforth02501-EX305B henceforth04600 1984
Kawasaki GPZ 305 B Belt Drive 27/17 CV, 20/13 kw 2cil. EX305B 3 Bastidores: EX305B henceforth04601-EX305B henceforth06700 1985
Kawasaki GPZ 305 B Belt Drive 27/17 CV, 20/13 kw 2cil. EX305B 4 Bastidores: EX305B henceforth06701-EX305B-999999 1986-1987
Kawasaki GPZ 305 B Belt Drive 27/17 CV, 20/13 kw 2cil. EX305B 6 Bastidores: EX305B henceforth10001-- 1988
Kawasaki Z 400 D 36 CV, 26 kw 2cil. K4 3 Bastidores: K4 henceforth44601-K4-506001 1976
Kawasaki Z 400 D 36 CV, 26 kw 2cil. K4 4 Bastidores: K4 henceforth65101-K4-527592 1977
Kawasaki Z 650 B 67/48 CV, 49/35 kw 4cil. B 1 Bastidores: B henceforth00001-B henceforth27500 1977
Kawasaki Z 650 B 67/48 CV, 49/35 kw 4cil. B 2 Bastidores: B henceforth27501-- 1978-1980
Kawasaki Z 750 N Spectre 78 CV, 57 kw 4cil. KZDN1CA 1 Bastidores: KZDN1CA henceforth00001-- 1982
Kawasaki Z 750 N Spectre 78 CV, 57 kw 4cil. KZDN1DA 2 Bastidores: KZDN1DA henceforth07401-- 1983
Kawasaki ZL 600 B Eliminator 61/34 CV, 45/25 kw 4cil. ZL600B 1 Bastidores: ZL600B henceforth00001-ZL600B-999999 1995-1997
Moto Guzzi V35 350 Custom 27 CV, 20 kw 2cil. PL350 Bastidores: PL 11111-PL 21090 1982-1986
Moto Guzzi V50 500 Custom 49 CV, 36 kw 2cil. PM500 Bastidores: PM 11111-PM 12530 1982-1986
Moto Guzzi V65 650 Lario 60 CV, 44 kw 2cil. PT Bastidores: PT 11111-PT 15032 1984-1989
