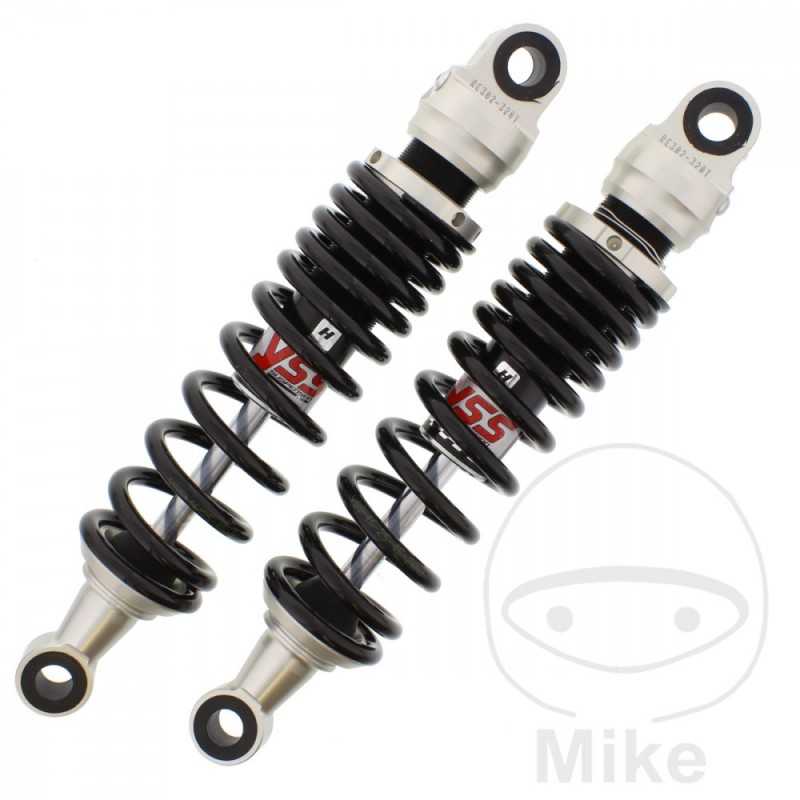

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.14

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 25-45
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha FZX 750 Fazer 94 CV, 69 kw 4cil. 2JE 2JE Bastidores: 2JE henceforth00101-2JE henceforth05000 1987
Yamaha FZX 750 Fazer 94 CV, 69 kw 4cil. 2JE 2JE Bastidores: 2JE henceforth05101-2JE henceforth13000 1988-1989
