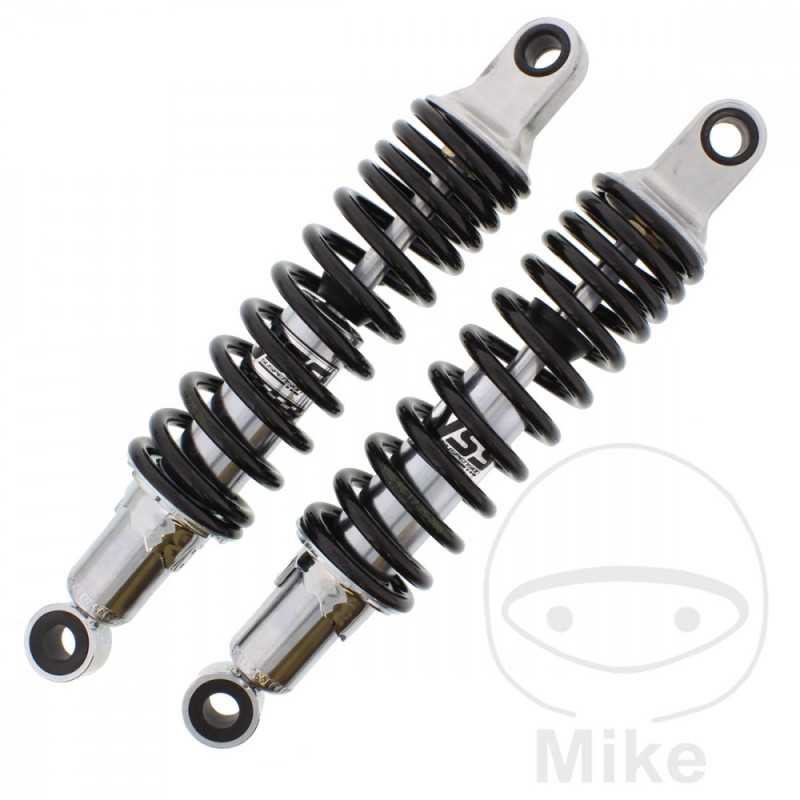

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.02

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XS 360 27 CV, 20 kw 2cil. 1U4 1U4 Bastidores: 1U4 henceforth00101-- 1977-1978
Yamaha XS 500 50 CV, 37 kw 2cil. 1H2 1H2 Bastidores: 1H2 henceforth00101-- 1976-1979
