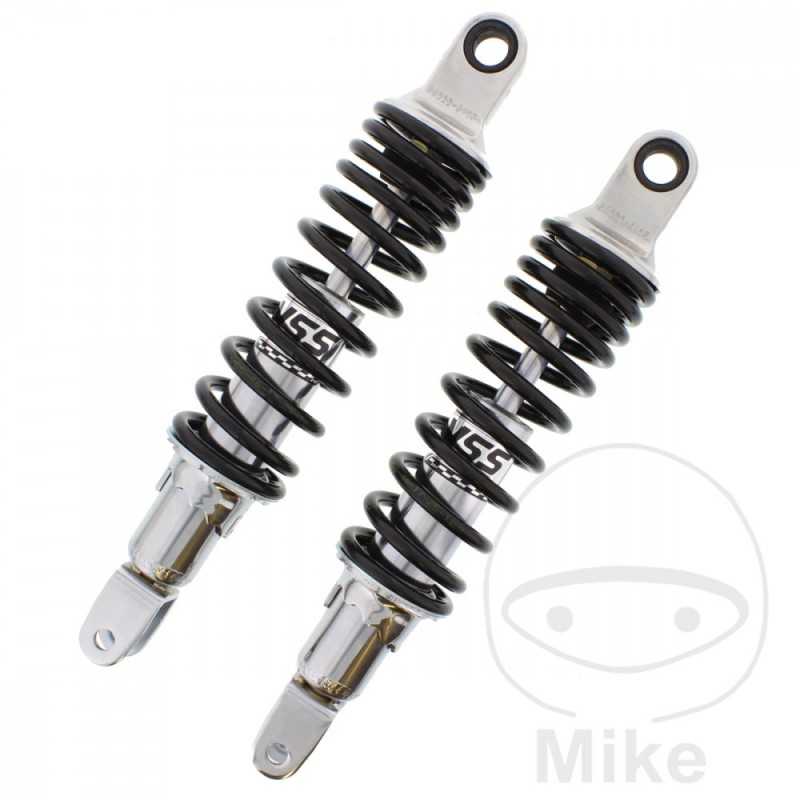

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.07.00

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 310MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 G 27 CV, 20 kw 2cil. CB250 5 Bastidores: CB250-6005645-CB250G-6522845 1974-1977
Honda CB 250 K 30 CV, 22 kw 2cil. CB250 3 Bastidores: CB250-4000001-CB250-4099999 1971
Honda CB 250 K 30 CV, 22 kw 2cil. CB250 4 Bastidores: CB250-5000001-CB250-5020345 1972
Honda CB 250 K 30 CV, 22 kw 2cil. CB250 5 Bastidores: CB250-6001805-CB250-6099999 1973
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N Bastidores: CB400N-3000006-CB400N-3010850 1978-1979
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N A Bastidores: CB400N-3100001-CB400N-3199999 1980
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N B Bastidores: CB400N-3200002-CB400N-3207397 1981
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N Bastidores: CB400N-2000001-CB400N-2099999 1978-1979
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N A Bastidores: CB400N-2100001-CB400N-2199999 1980
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N B Bastidores: CB400N-2200011-CB400N-2203108 1981
