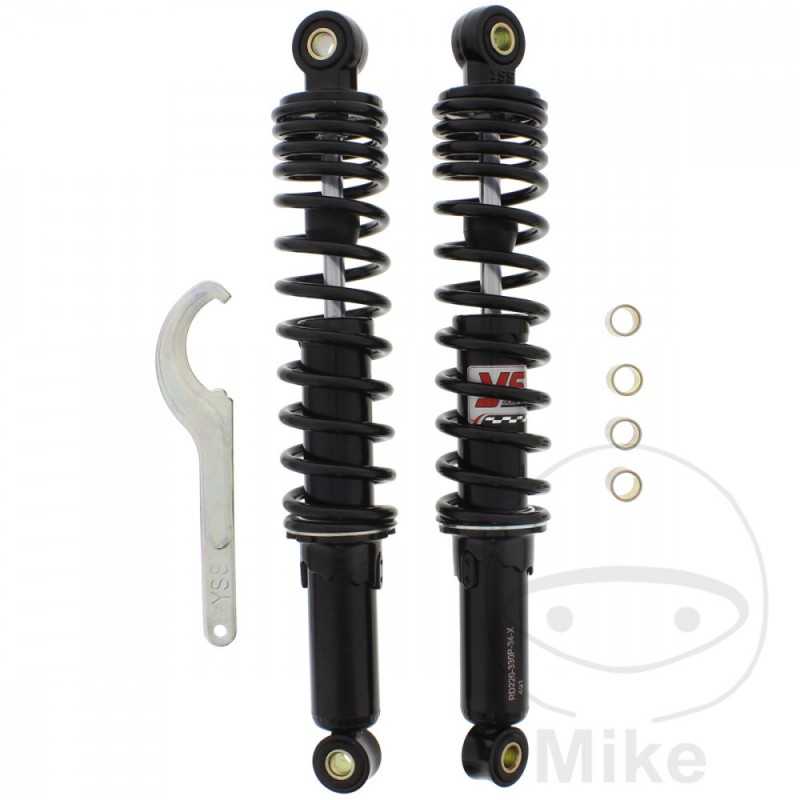

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.06.98

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 200 MM
SPRING DIAMETER: 40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Benelli 354 350 38/27 CV, 28/20 kw 4cil. - Bastidores: --- 1980
Benelli 354 350 Sport 38/27 CV, 28/20 kw 4cil. - Bastidores: --- 1981
Benelli 354 350 Sport II 38/27 CV, 28/20 kw 4cil. - Bastidores: --- 1984-1985
Benelli 500 500 LS 44 CV, 32 kw 4cil. - Bastidores: --- 1977-1980
