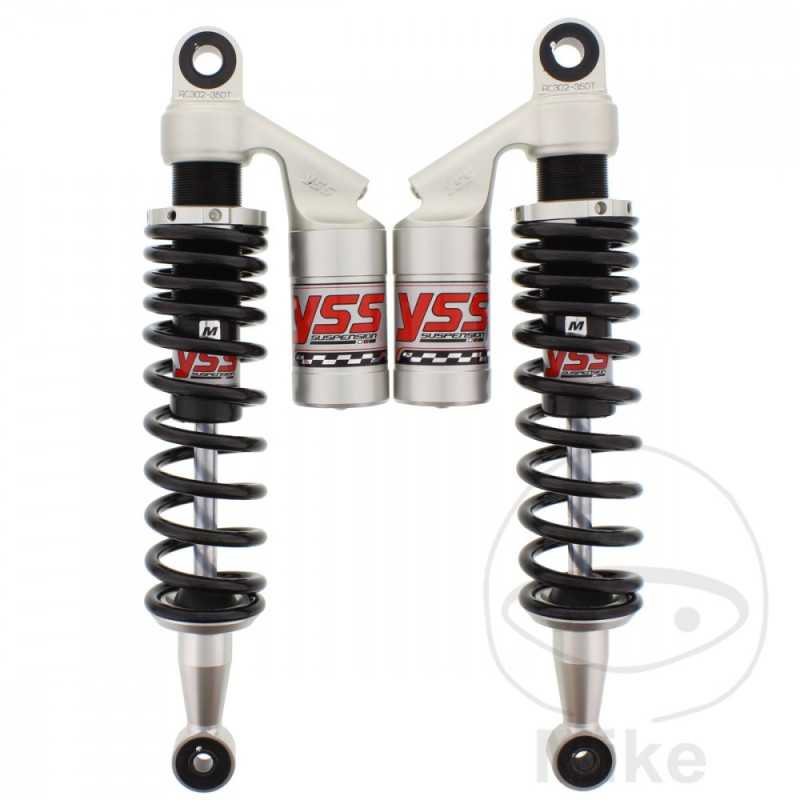

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.06.96

Milled aluminum body, adjustable spring strut with spring preload.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30 P Bastidores: SC30-3000001-SC30-3000020 1993
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30 R Bastidores: SC30-3100001-- 1994
Honda CB 1000 F Super Four 50 CV, 37 kw 4cil. SC30 S Bastidores: SC30-3200002-- 1995
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30 P Bastidores: SC30-2000028-SC30-2002431 1993
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30 R Bastidores: SC30-2100008-SC30-2101753 1994
Honda CB 1000 F Super Four 98 CV, 72 kw 4cil. SC30 S Bastidores: SC30-2200010-- 1995
