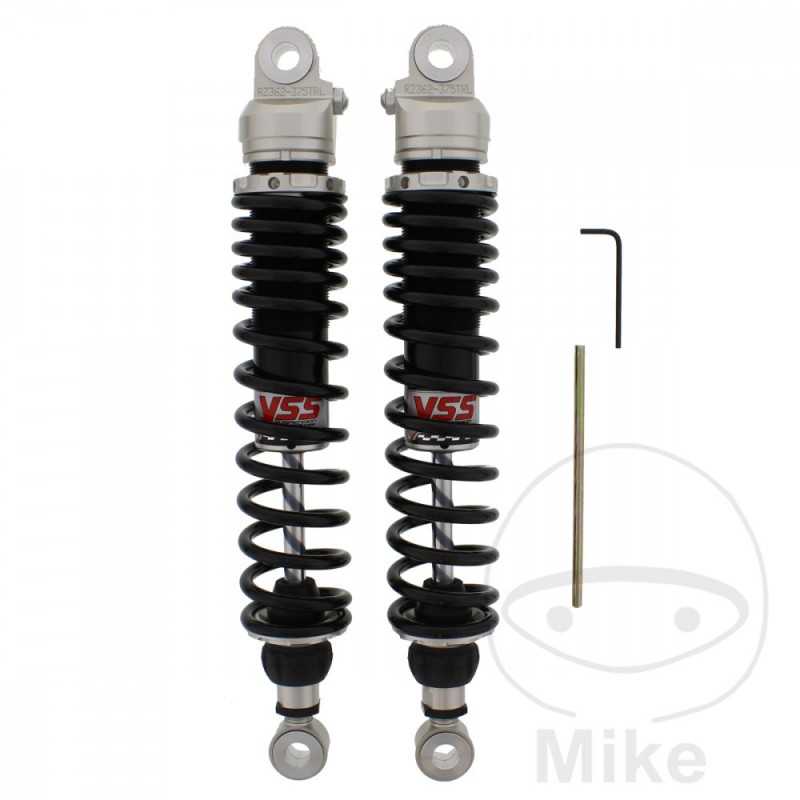

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.05.37

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 375MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph Thruxton 900 34 CV, 25 kw 2cil. 986ME Bastidores: 1 --1 - 2004-2007
Triumph Thruxton 900 69 CV, 51 kw 2cil. 986ME Bastidores: 1 --1 - 2004-2007
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G - 463262-SMTTJ9147G - 2011
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 2008-2010
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 2012-2012
Triumph Thruxton 900 EFI 69/34 CV, 51/25 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 463261 2011
Triumph Thruxton 900 EFI 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G - 694350-SMTTJ9147G - 2015
Triumph Thruxton 900 EFI 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 2013
Triumph Thruxton 900 EFI 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G --SMTTJ9147G - 694349 2014-2015
Triumph Thruxton 900 EFI Ace 69/48 CV, 51/35 kw 2cil. 986ME2 Bastidores: SMTTJ9147G - 694350-SMTTJ9147G - 2015
