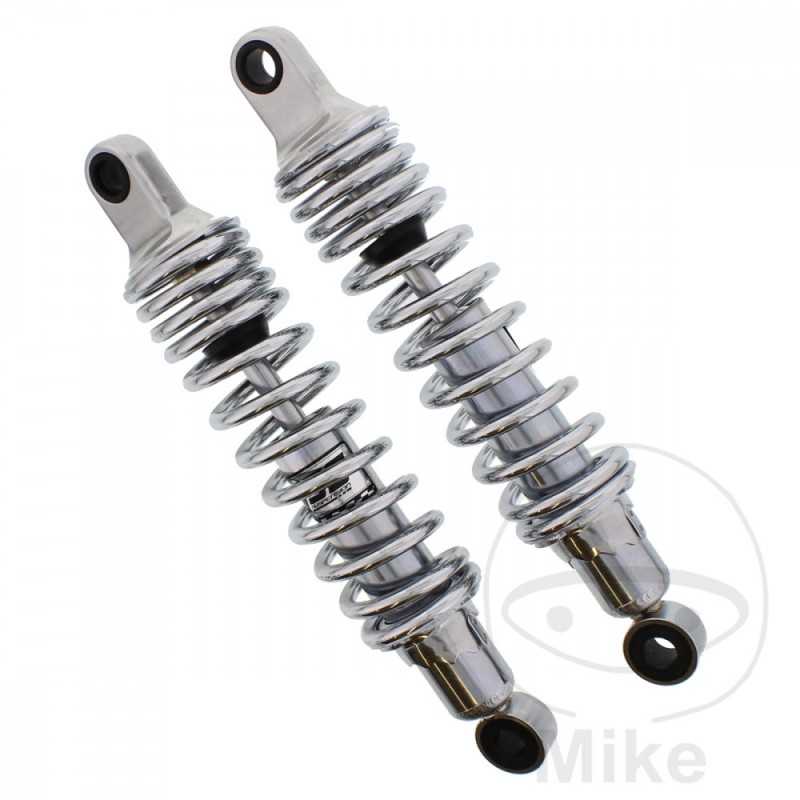

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.33

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 310MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A M Bastidores: NJ42A-103100-NJ42A-107207 1991-1993
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A R Bastidores: NJ42A-107208-- 1994-1995
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A T Bastidores: NJ42A-109657-- 1996-1997
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A W Bastidores: NJ42A-110966-NJ42A-111515 1998
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A X Bastidores: NJ42A-111516-- 1999
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42AD F Bastidores: NJ42AD-100705-NJ42AD-101614 1985-1987
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42AD J Bastidores: NJ42AD-101615-- 1988-1990
