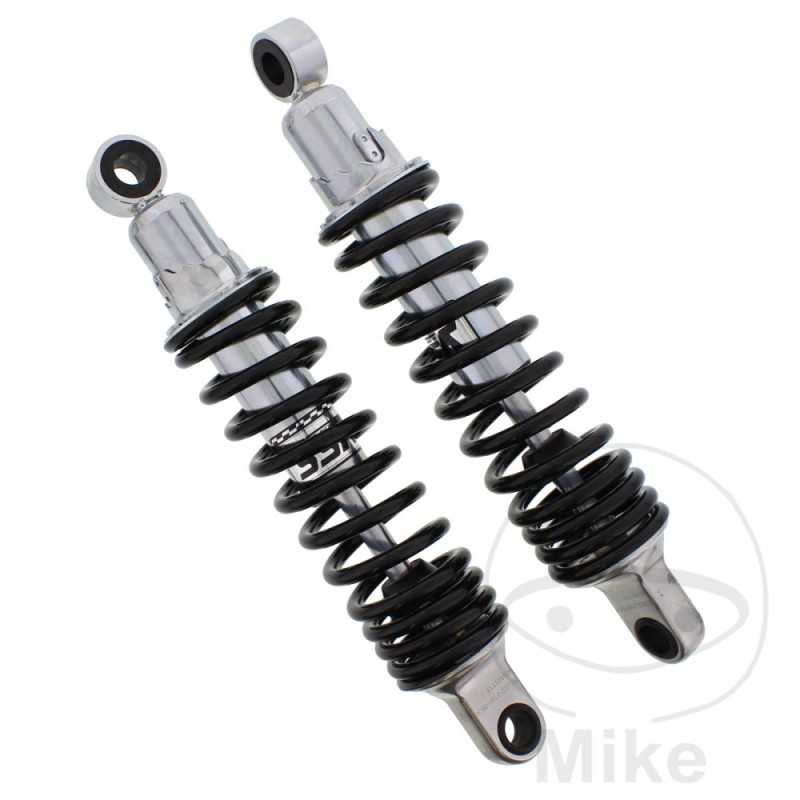

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.32

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 310MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi V35 350 I 27 CV, 20 kw 2cil. PA350 Bastidores: PA 11111-PA 17046 1977-1979
Moto Guzzi V35 350 II 27 CV, 20 kw 2cil. PD Bastidores: PD 11111-- 1980-1984
Moto Guzzi V35 350 III 27 CV, 20 kw 2cil. PY Bastidores: PY 11111-- 1985-1992
Moto Guzzi V35 350 Imola I 27 CV, 20 kw 2cil. PC Bastidores: PC 11111-PC 19261 1979-1984
Moto Guzzi V50 500 Custom 49 CV, 36 kw 2cil. PM500 Bastidores: PM 11111-PM 12530 1982-1986
Moto Guzzi V50 500 I 45 CV, 33 kw 2cil. PB500 Bastidores: PB 11111-PB 18454 1977-1979
Moto Guzzi V50 500 II 45 CV, 33 kw 2cil. PB500 Bastidores: PB 11111-PB 18454 1979-1980
Moto Guzzi V50 500 III 49 CV, 36 kw 2cil. PF Bastidores: PF 11111-- 1980-1984
Moto Guzzi V50 500 Monza 49 CV, 36 kw 2cil. PE Bastidores: PE 11111-PE 15265 1980-1984
