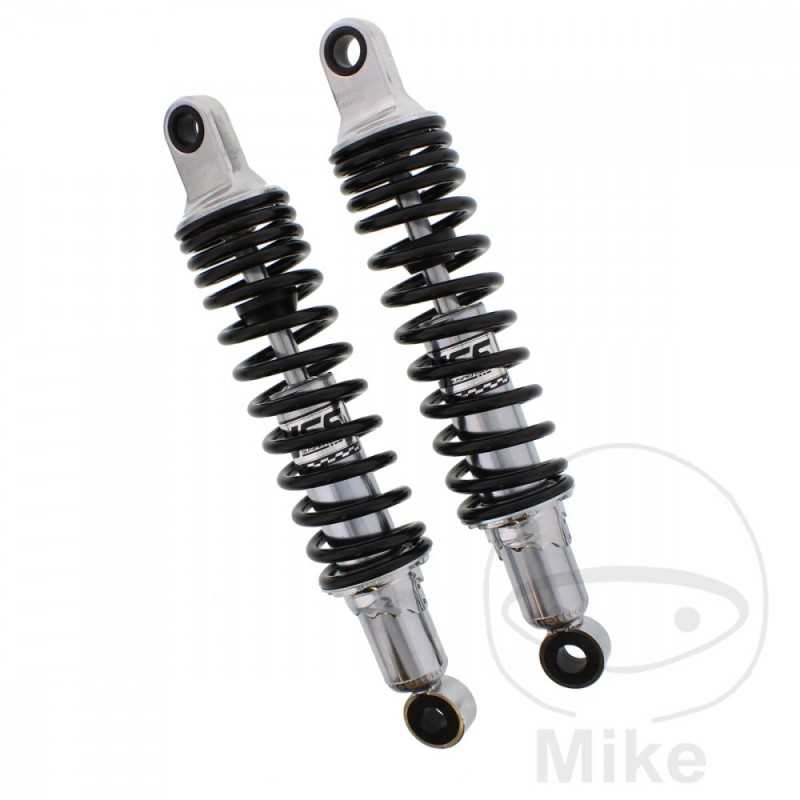

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.28

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1311 W Bastidores: AP1311 henceforth0100001-AP1311 henceforth0105343 1998
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1311 X Bastidores: AP1311 henceforth0105344-AP1311 henceforth0108142 1999
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1311 Y Bastidores: AP1311 henceforth0105344-AP1311 henceforth0108142 2000-2002
Suzuki GZ 125 Marauder 10,2 CV, 7,5 kw 1cil. AP1711 K3 Bastidores: AP1711 henceforth0100001-AP1711 henceforth0101036 2003
Suzuki GZ 125 Marauder 11,7 CV, 8,6 kw 1cil. AP1711 K4 Bastidores: AP1711 henceforth0101037-AP1711 henceforth0106425 2004
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 K3 Bastidores: AP2111 henceforth0100001-- 2003
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 W Bastidores: AP2111 henceforth0100001-AP2111 henceforth0101708 1998
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 X Bastidores: AP2111 henceforth0101709-- 1999
Suzuki GZ 125 U Marauder 80 Km/h 7,5 CV, 5,5 kw 1cil. AP2111 Y Bastidores: AP2111 henceforth0101709-- 2000-2002
Suzuki GZ 125 U Marauder 80 Km/h 9,1 CV, 6,7 kw 1cil. AP2111 K4 Bastidores: AP2111 henceforth0100001-- 2004
