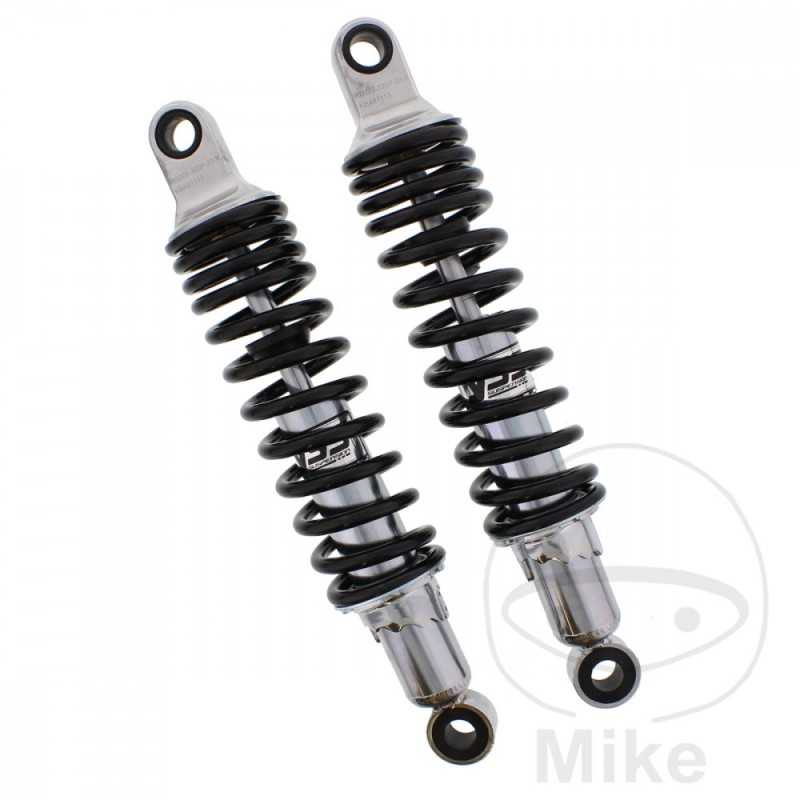

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.27

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XJ 650 H 71 CV, 52 kw 4cil. 4K0 11N Bastidores: 4K0 henceforth55101-4K0 henceforth70000 1982
Yamaha XJ 650 H 71 CV, 52 kw 4cil. 4K0 27F Bastidores: 4K0 henceforth70101-4K0-200000 1983-1985
Yamaha XJ 650 H 71 CV, 52 kw 4cil. 4K0 4K0 Bastidores: 4K0 henceforth00101-- 1980-1981
Yamaha XJ 650 N 50 CV, 37 kw 4cil. 4K0 11R Bastidores: 4K0 henceforth50101-4K0 henceforth55000 1982
Yamaha XJ 650 N 50 CV, 37 kw 4cil. 4K0 27G Bastidores: 4K0-200101-4K0-300000 1983-1985
Yamaha XJ 650 T Turbo 90 CV, 66 kw 4cil. 11T 11T Bastidores: 11T henceforth00101-11T henceforth10000 1982-1984
