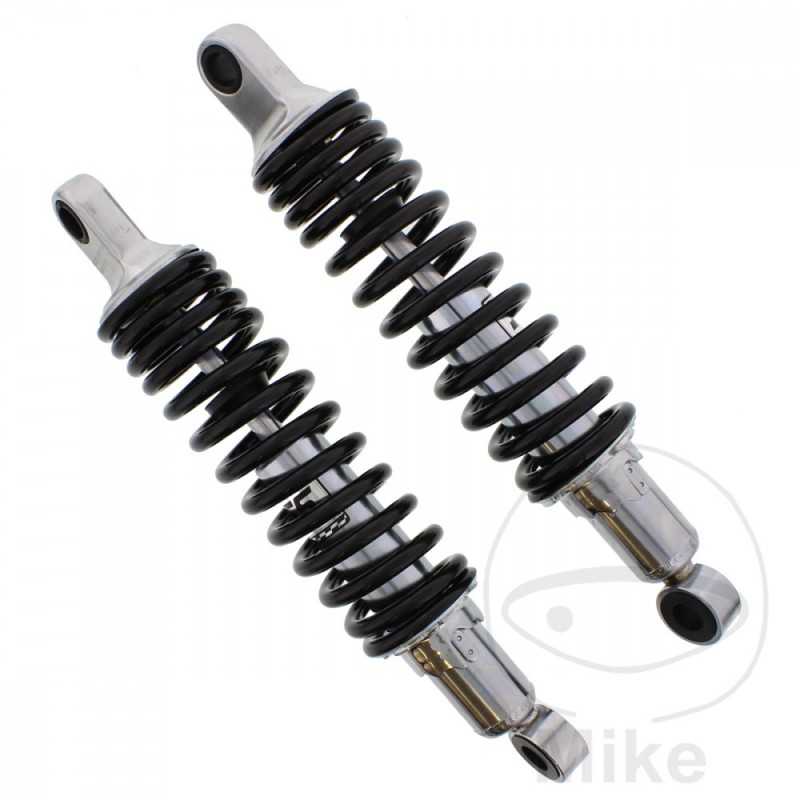

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.25

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XS 1100 95 CV, 70 kw 4cil. 2H9 3X0 Bastidores: 2H9-130101-2H9-140000 1980
Yamaha XS 1100 95 CV, 70 kw 4cil. 2H9 3X0 Bastidores: 2H9-140101-2H9-150000 1981-1983
