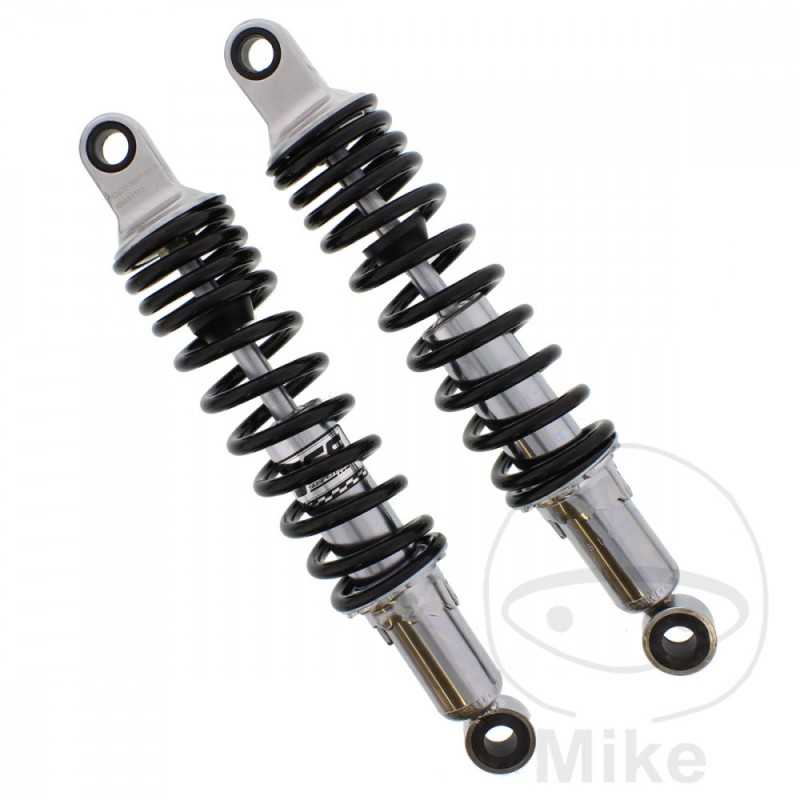

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.23

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Triumph 6T 650 Thunderbird 34 CV, 25 kw 2cil. - Bastidores: --- 1947-1949
Triumph 6T 650 Thunderbird 34 CV, 25 kw 2cil. - Bastidores: --- 1955-1961
Triumph T120 650 Bonneville 46 CV, 33,8 kw 2cil. - Bastidores: --- 1958-1972
Triumph T120 650 Bonneville 49 CV, 36 kw 2cil. - Bastidores: --- 1973-1975
Triumph T150 750 Trident 58 CV, 42,6 kw 3cil. - Bastidores: --- 1969-1972
Triumph T150 750 V Trident 58 CV, 42,6 kw 3cil. - Bastidores: --- 1972-1975
Triumph T160 750 Trident 58 CV, 42,6 kw 3cil. - Bastidores: --- 1975
Triumph TR5 500 Trophy 25 CV, 18,4 kw 2cil. - Bastidores: --- 1955-1958
