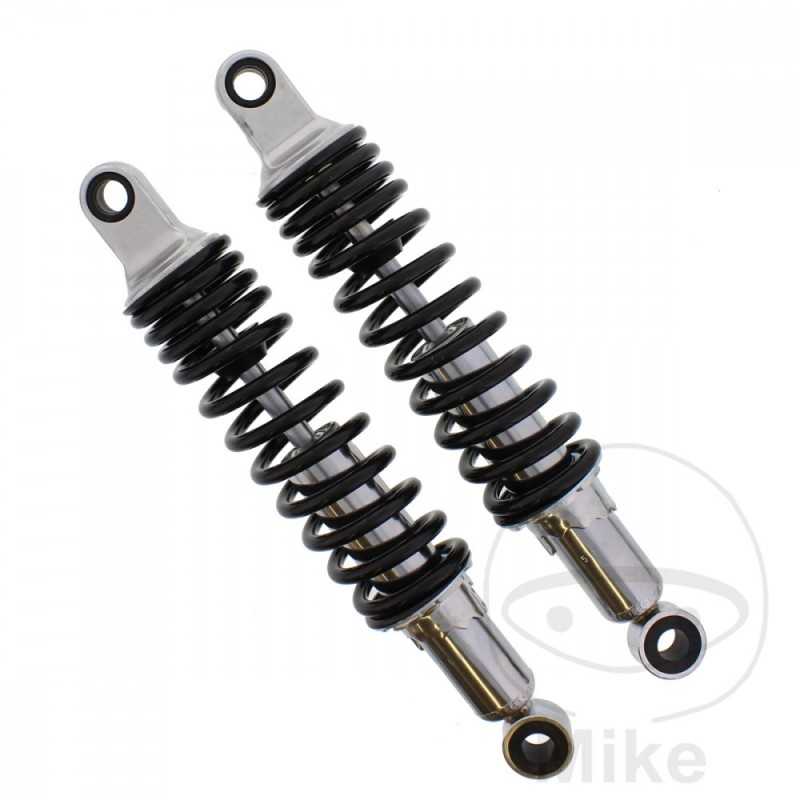

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.22

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GK53C D Bastidores: GK53C-101505-GK53C-105109 1983-1984
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GK53C F Bastidores: GK53C-105110-GK53C-105631 1985
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GK53C G Bastidores: GK53C-105632-GK53C-106693 1986
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GK53C H Bastidores: GK53C-106694-- 1987
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GK53C Z Bastidores: GK53C-100001-GK53C-101504 1982
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GS40X T Bastidores: GS40X-500001-GS40X-502239 1980
Suzuki GSX 400 E 27 CV, 20 kw 2cil. GS40X X Bastidores: GS40X-502240-- 1981
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GK53C D Bastidores: GK53C-101505-GK53C-105109 1983-1984
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GK53C F Bastidores: GK53C-105110-GK53C-105631 1985
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GK53C G Bastidores: GK53C-105632-GK53C-106693 1986
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GK53C H Bastidores: GK53C-106694-- 1987
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GK53C Z Bastidores: GK53C-100001-GK53C-101504 1982
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GS40X T Bastidores: GS40X-500001-GS40X-502239 1980
Suzuki GSX 400 E 43 CV, 32 kw 2cil. GS40X X Bastidores: GS40X-502240-- 1981
Suzuki GSX 400 FE Katana 42 CV, 31 kw 4cil. GS40XF X Bastidores: GS40XF-500001-- 1981-1983
Suzuki GSX 400 L 27 CV, 20 kw 2cil. GS40X T Bastidores: GS40X-700001-GX40X-700315 1980
Suzuki GSX 400 L 27 CV, 20 kw 2cil. GS40X X Bastidores: GS40X-700316-- 1981-1983
Suzuki GSX 400 L 41 CV, 30 kw 2cil. GS40X T Bastidores: GS40X-700001-GX40X-700315 1980
Suzuki GSX 400 L 41 CV, 30 kw 2cil. GS40X X Bastidores: GS40X-700316-- 1981-1983
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GK53C D Bastidores: GK53C-101505-GK53C-103106 1983
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GK53C E Bastidores: GK53C-103107-GK53C-105109 1984
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GK53C F Bastidores: GK53C-105110-GK53C-105631 1985
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GK53C G Bastidores: GK53C-105632-GK53C-106693 1986
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GK53C H Bastidores: GK53C-106694-- 1987
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GS40X T Bastidores: GS40X-500001-GS40X-502239 1980
Suzuki GSX 400 S 27 CV, 20 kw 2cil. GS40X X Bastidores: GS40X-502240-- 1981
Suzuki GSX 400 S 41 CV, 30 kw 2cil. GK53C E Bastidores: GK53C-103107-GK53C-105109 1984
Suzuki GSX 400 S 43 CV, 32 kw 2cil. GK53C D Bastidores: GK53C-101505-GK53C-103106 1983
Suzuki GSX 400 S 43 CV, 32 kw 2cil. GK53C F Bastidores: GK53C-105110-GK53C-105631 1985
Suzuki GSX 400 S 43 CV, 32 kw 2cil. GK53C G Bastidores: GK53C-105632-GK53C-106693 1986
Suzuki GSX 400 S 43 CV, 32 kw 2cil. GK53C H Bastidores: GK53C-106694-- 1987
Suzuki GSX 400 S 43 CV, 32 kw 2cil. GS40X T Bastidores: GS40X-500001-GS40X-502239 1980
Suzuki GSX 400 S 43 CV, 32 kw 2cil. GS40X X Bastidores: GS40X-502240-- 1981
