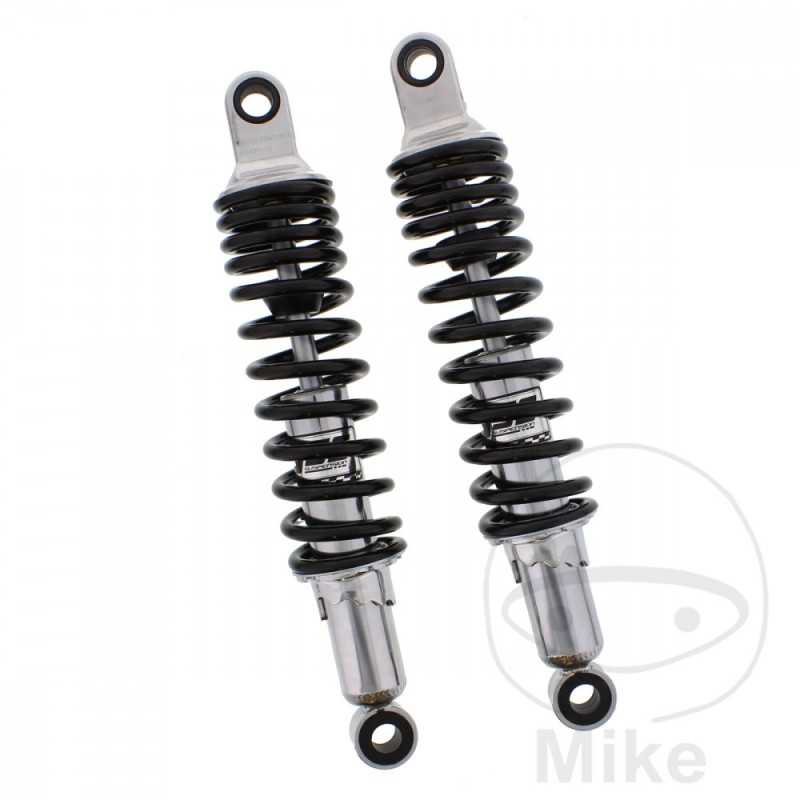

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.21

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 450 S 27 CV, 20 kw 2cil. PC17 G Bastidores: PC17-3000002-PC17-3004751 1986-1987
Honda CB 450 S 27 CV, 20 kw 2cil. PC17 J Bastidores: PC17-3100001-PC17-3101900 1988-1989
Honda CB 450 S 44 CV, 32 kw 2cil. PC17 G Bastidores: PC17-2000029-PC17-2003796 1986-1987
Honda CB 450 S 44 CV, 32 kw 2cil. PC17 J Bastidores: PC17-2100002-PC17-2101610 1988-1989
