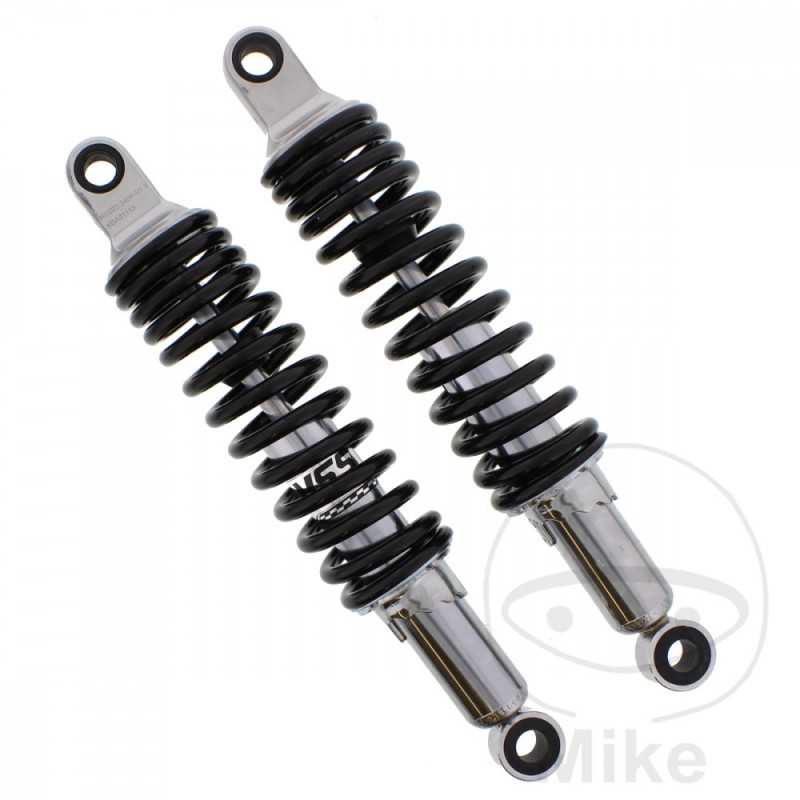

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.19

Oil pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Adjustment tool included.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 25-35
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBX 650 E 50 CV, 37 kw 4cil. RC13 D Bastidores: RC13-3000002-RC13-3099999 1983-1984
Honda CBX 650 E 75 CV, 55 kw 4cil. RC13 D Bastidores: RC13-2000197-RC13-2099999 1983-1984
