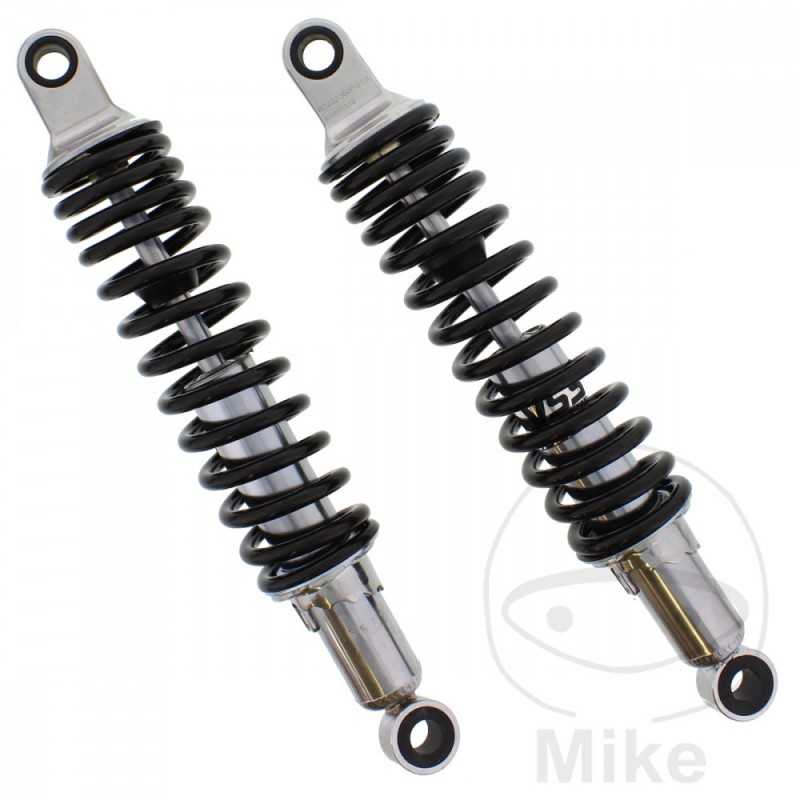

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.18

Oil pressure shock absorber with steel casing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: OIL PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
Length : 350mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Laverda SFC 750 68 CV, 50 kw 2cil. - Bastidores: 16000-- 1974
Laverda SFC 750 eléctriconica 75 CV, 55 kw 2cil. - Bastidores: 18000-- 1974-1975
