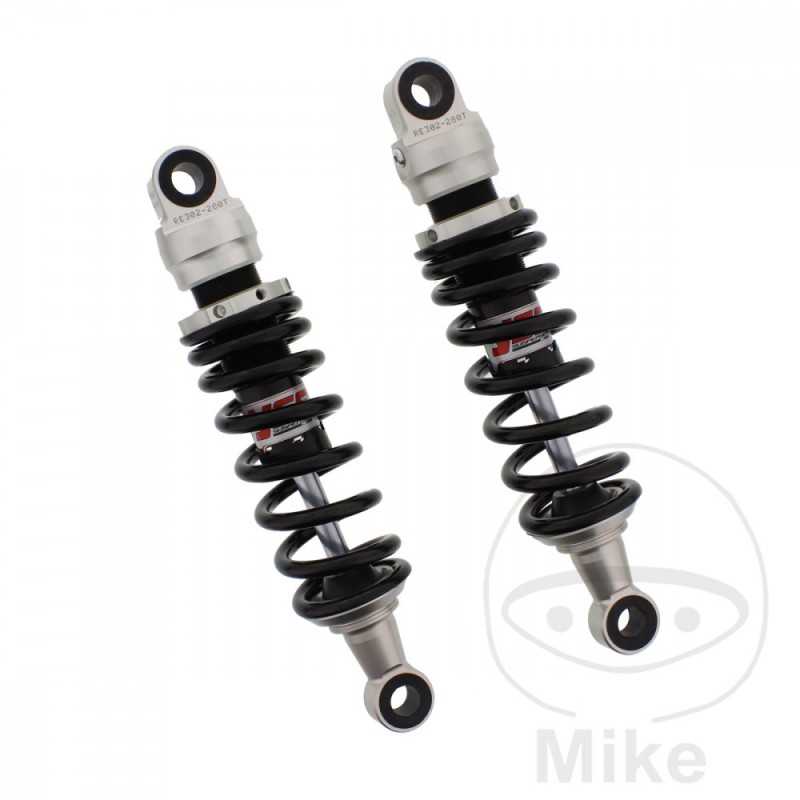

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.16

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 280MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 160 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki VZ 800 Marauder 50 CV, 37 kw 2cil. AF1112 V Bastidores: AF1112 henceforth0100001-AF1112 henceforth0104232 1997
Suzuki VZ 800 Marauder 50 CV, 37 kw 2cil. AF1112 W Bastidores: AF1112 henceforth0104233-AF1112 henceforth0108030 1998
Suzuki VZ 800 Marauder 50 CV, 37 kw 2cil. AF1112 X Bastidores: AF1112 henceforth0108031-AF1112 henceforth0111155 1999
Suzuki VZ 800 Marauder 53 CV, 39 kw 2cil. AF1112 K1 Bastidores: AF1112 henceforth0113171-AF1112 henceforth0113966 2001
Suzuki VZ 800 Marauder 53 CV, 39 kw 2cil. AF1112 K2 Bastidores: AF1112 henceforth0113967-AF1112 henceforth0114985 2002
Suzuki VZ 800 Marauder 53 CV, 39 kw 2cil. AF1112 K3 Bastidores: AF1112 henceforth0114986-- 2003
Suzuki VZ 800 Marauder 53 CV, 39 kw 2cil. AF1112 Y Bastidores: AF1112 henceforth0111156-AF1112 henceforth0113170 2000
