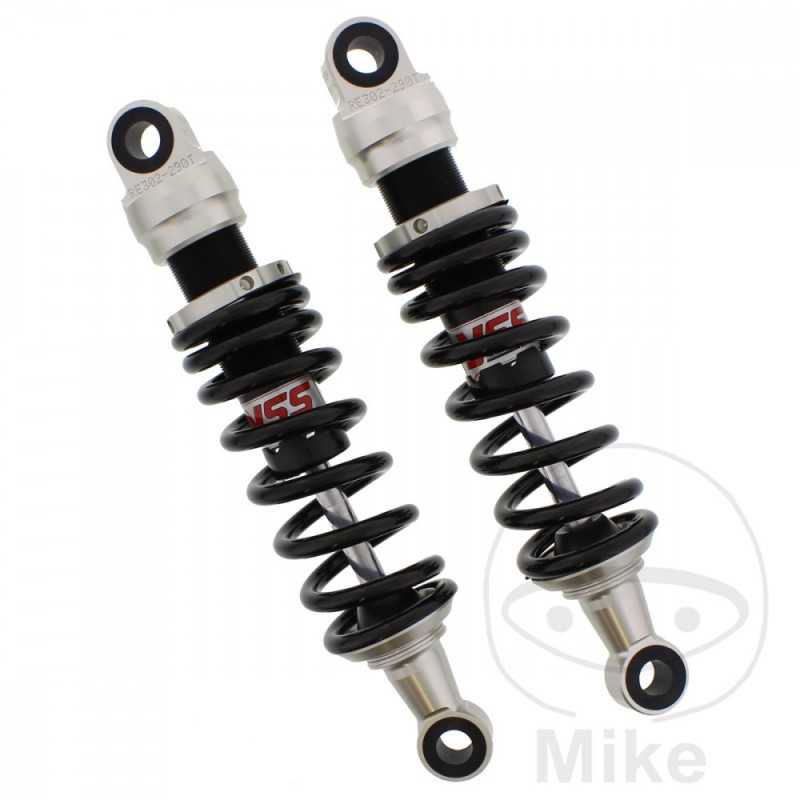

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.15

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 290MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 160 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32 S Bastidores: SC32-3000010-- 1995
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B T Bastidores: SC32B-TA000001-- 1996
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B V Bastidores: SC32B-VA000001-- 1997
Honda VT 1100 C2 Shadow ACE 34 CV, 25 kw 2cil. SC32B W Bastidores: SC32B-WA105001-- 1998
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32 S Bastidores: SC32-2000010-- 1995
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A T Bastidores: SC32A-TA000001-- 1996
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A V Bastidores: SC32A-VA000001-- 1997
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A V Bastidores: SC32A-VA005001-- 1997
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A W Bastidores: SC32A-WA105001-- 1998
Honda VT 1100 C2 Shadow ACE 50 CV, 37 kw 2cil. SC32A X Bastidores: 1HF SC32A-XA205001-- 1999-2000
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 3 Bastidores: 1HF SC52A-3A000001-1HF SC52A-3A099999 2003
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 4 Bastidores: 1HF SC52A-4A100001-1HF SC52A-4A199999 2004
Honda VTX 1300 75 CV, 55 kw 2cil. SC52A 5 Bastidores: 1HF SC52A-5A200001-1HF SC52A-5A299999 2005
