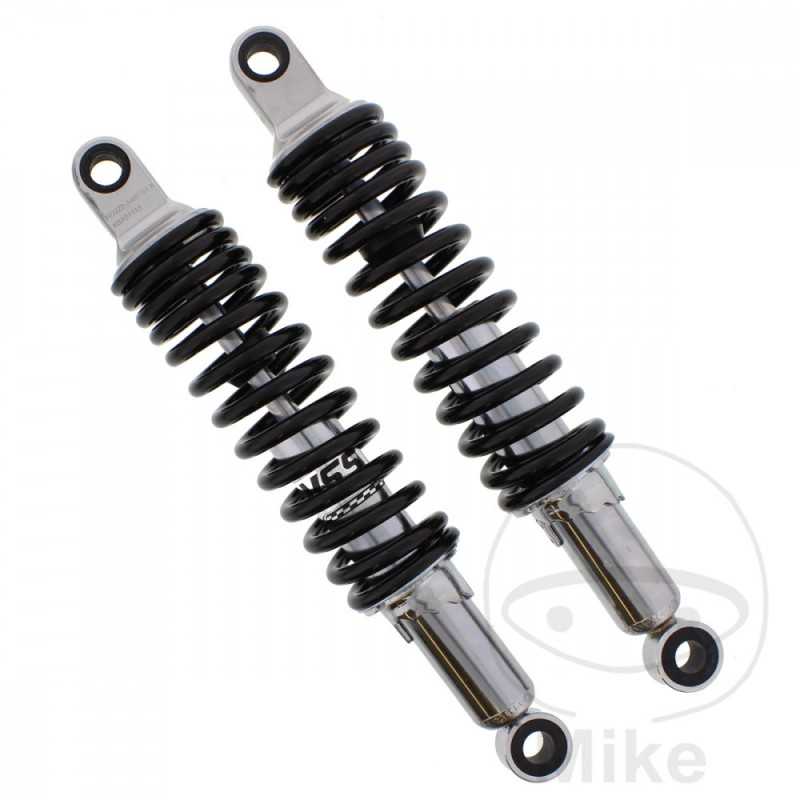

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.14

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
Length: 300 mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: MECHANICAL SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki BJ 250 A Estrella 17 CV, 13 kw 1cil. BJ250A 2 Bastidores: BJ250A henceforth08001-BJ250A henceforth14000 1994
Kawasaki BJ 250 A Estrella 17 CV, 13 kw 1cil. BJ250A 3 Bastidores: BJ250A henceforth14001-BJ250A-999999 1995
Kawasaki BJ 250 C Estrella 17 CV, 13 kw 1cil. BJ250C 2 Bastidores: BJ250C henceforth00001-BJ250C henceforth02000 1996
Kawasaki BJ 250 C Estrella 17 CV, 13 kw 1cil. BJ250C 3 Bastidores: BJ250C henceforth02001-BJ250C-999999 1997-1999
Kawasaki EL 250 B Eliminator 27 CV, 20 kw 2cil. EL250B 2 Bastidores: EL250B henceforth00001-EL250B henceforth03300 1988
Kawasaki EL 250 B Eliminator 27 CV, 20 kw 2cil. EL250B 3 Bastidores: EL250B henceforth03301-EL250B-999999 1989
Kawasaki EL 250 D Eliminator 27 CV, 20 kw 2cil. EL250B 1 Bastidores: EL250B henceforth05001-EL250B henceforth07400 1990
Kawasaki EL 250 D Eliminator 27 CV, 20 kw 2cil. EL250B 2 Bastidores: EL250B henceforth07401-EL250B henceforth11000 1991
Kawasaki EL 250 D Eliminator 27 CV, 20 kw 2cil. EL250B 3 Bastidores: EL250B henceforth11001-EL250B henceforth14000 1992
Kawasaki EL 250 D Eliminator 27/17 CV, 20/13 kw 2cil. EL250B 4 Bastidores: EL250B henceforth14001-EL250B henceforth40000 1993
Kawasaki EL 250 D Eliminator 33/27/17 CV, 24/20/13 kw 2cil. EL250B 5 Bastidores: EL250B henceforth40001-EL250B-999999 1994-1995
Kawasaki EL 250 E Eliminator 27 CV, 20 kw 2cil. EL250E 1 Bastidores: EL250E henceforth00001-EL250E henceforth05000 1991
Kawasaki EL 250 E Eliminator 27 CV, 20 kw 2cil. EL250E 2 Bastidores: EL250E henceforth05001-EL250E henceforth10000 1992
Kawasaki EL 250 E Eliminator 27/17 CV, 20/13 kw 2cil. EL250E 3 Bastidores: EL250E henceforth10001-EL250E henceforth14000 1993
Kawasaki EL 250 E Eliminator 33/27/17 CV, 24/20/13 kw 2cil. EL250E 4 Bastidores: EL250E henceforth14001-EL250E-999999 1994-1995
Kawasaki EN 500 A 50/27 CV, 37/20 kw 2cil. EN500A 1 Bastidores: EN500A henceforth00001-EN500A henceforth25000 1990-1991
Kawasaki EN 500 A 50/27 CV, 37/20 kw 2cil. EN500A 3 Bastidores: EN500A henceforth25001-EN500A henceforth45000 1992
Kawasaki EN 500 A 50/27 CV, 37/20 kw 2cil. EN500A 4 Bastidores: EN500A henceforth45001-EN500A-999999 1993
Suzuki GT 380 27 CV, 20 kw 3cil. GT380 B Bastidores: GT380-95063-- 1977-1979
Suzuki GT 380 33 CV, 24 kw 3cil. GT380 B Bastidores: GT380-95063-- 1977-1979
Suzuki GT 380 34/27 CV, 25/20 kw 3cil. GT380 A Bastidores: GT380-86754-GT380-95062 1976
Suzuki GT 380 34/27 CV, 25/20 kw 3cil. GT380 K Bastidores: GT380-30919-GT380-48731 1973
Suzuki GT 380 34/27 CV, 25/20 kw 3cil. GT380 L Bastidores: GT380-48731-GT380-65983 1974
Suzuki GT 380 34/27 CV, 25/20 kw 3cil. GT380 M Bastidores: GT380-65984-GT380-86753 1975
Suzuki GT 500 44/26 CV, 32/19 kw 2cil. T500 A Bastidores: GT500-90729-GT500-104421 1976
Suzuki GT 500 44/26 CV, 32/19 kw 2cil. T500 B Bastidores: GT500-104422-- 1977-1979
Suzuki GT 550 48 CV, 35 kw 3cil. GT550 A Bastidores: GT550-61315-GT550-70363 1976
Suzuki GT 550 48 CV, 35 kw 3cil. GT550 B Bastidores: GT550-70364-- 1977-1979
Suzuki GT 550 48 CV, 35 kw 3cil. GT550 K Bastidores: GT550-21780-GT550-36265 1973
Suzuki GT 550 48 CV, 35 kw 3cil. GT550 L Bastidores: GT550-36266-GT550-47118 1974
Suzuki GT 550 48 CV, 35 kw 3cil. GT550 M Bastidores: GT550-47119-GT550-61314 1975
Suzuki GT 750 52 CV, 38 kw 3cil. GT750 K Bastidores: GT750-31253-GT750-40246 1973
Suzuki GT 750 52 CV, 38 kw 3cil. GT750 L Bastidores: GT750-40247-GT750-52822 1974
Suzuki GT 750 63 CV, 46 kw 3cil. GT750 A Bastidores: GT750-61729-GT750-75738 1976
Suzuki GT 750 63 CV, 46 kw 3cil. GT750 B Bastidores: GT750-75739-- 1977-1979
Suzuki GT 750 63 CV, 46 kw 3cil. GT750 M Bastidores: GT750-52823-GT750-61728 1975
Yamaha SR 250 SE 1cil. 21F 21F Bastidores: --- 1982
Yamaha XV 250 H Virago 22 CV, 15,5 kw 2cil. 3LS 3LS1 Bastidores: 3LS henceforth00101-3LS henceforth08000 1989-1991
Yamaha XV 250 H Virago 22 CV, 15,5 kw 2cil. 3LS 3LS2 Bastidores: 3LS henceforth08101-- 1992-1993
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW1 Bastidores: 3LW henceforth00101-3LW henceforth04000 1989-1991
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW2 Bastidores: 3LW henceforth04101-- 1992-1993
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW3 Bastidores: 3LW henceforth08101-3LW henceforth11999 1994
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW4 Bastidores: 3LW henceforth12101-3LW henceforth14099 1995
Yamaha XV 250 N Virago 17 CV, 12,5 kw 2cil. 3LW 3LW6 Bastidores: 3LW henceforth17001-- 1996
Yamaha XV 250 S Virago 17 CV, 12,5 kw 2cil. 3LW 3LW5 Bastidores: 3LW henceforth14101-3LW henceforth15099 1995-1996
Yamaha XVS 125 H Drag Star 13 CV, 9,6 kw 2cil. VE011 5JX1 Bastidores: VE011 henceforth00301-- 2000
Yamaha XVS 125 H Drag Star 13 CV, 9,6 kw 2cil. VE011 5JX3 Bastidores: VE011 henceforth10101-- 2001
Yamaha XVS 125 H Drag Star 13 CV, 9,6 kw 2cil. VE011 5JX5 Bastidores: VE011 henceforth10931-- 2002-2003
Yamaha XVS 125 H Drag Star 13 CV, 9,6 kw 2cil. VE011 5JX7 Bastidores: VE011 henceforth13271-- 2004
Yamaha XVS 125 N Drag Star 80 Km/h 13 CV, 9,6 kw 2cil. VE012 5JX2 Bastidores: VE012 henceforth00301-- 2000
Yamaha XVS 125 N Drag Star 80 Km/h 13 CV, 9,6 kw 2cil. VE012 5JX4 Bastidores: VE012--- 2001
Yamaha XVS 125 N Drag Star 80 Km/h 13 CV, 9,6 kw 2cil. VE012 5JX6 Bastidores: VE012--- 2002-2003
Yamaha XVS 250 Drag Star 21 CV, 15,5 kw 2cil. VG031 5KR2 Bastidores: VG031 henceforth00301-- 2001
Yamaha XVS 250 Drag Star 21 CV, 15,5 kw 2cil. VG031 5KR5 Bastidores: VG031 henceforth02288-- 2002-2003
Yamaha XVS 250 Drag Star 21 CV, 15,5 kw 2cil. VG031 5KR9 Bastidores: VG031 henceforth03097-- 2004
