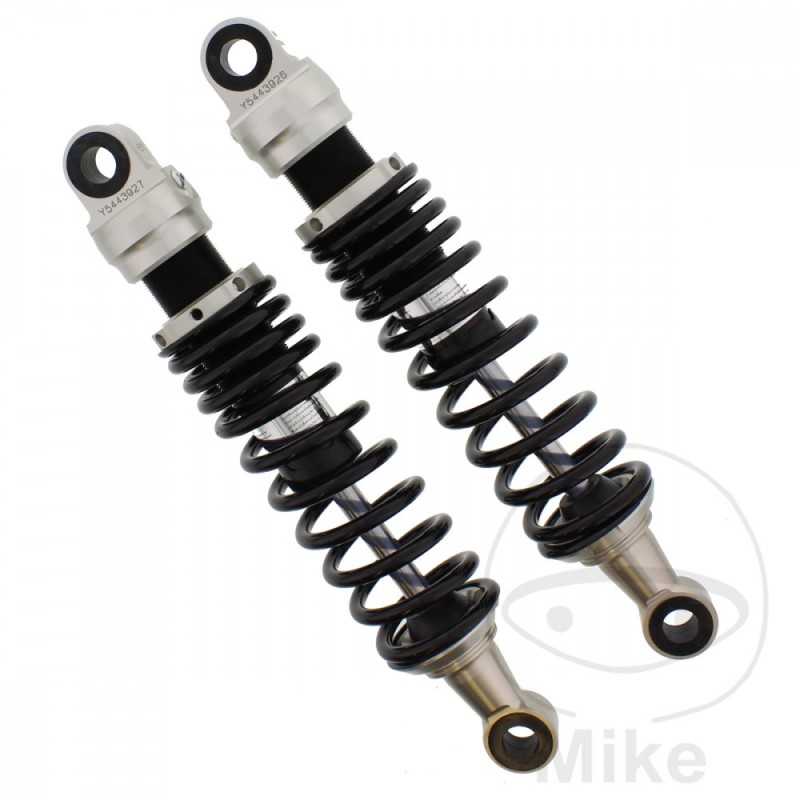

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.13

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 310MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42AD F Bastidores: NJ42AD-100705-NJ42AD-101614 1985-1987
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42AD J Bastidores: NJ42AD-101615-- 1988-1990
