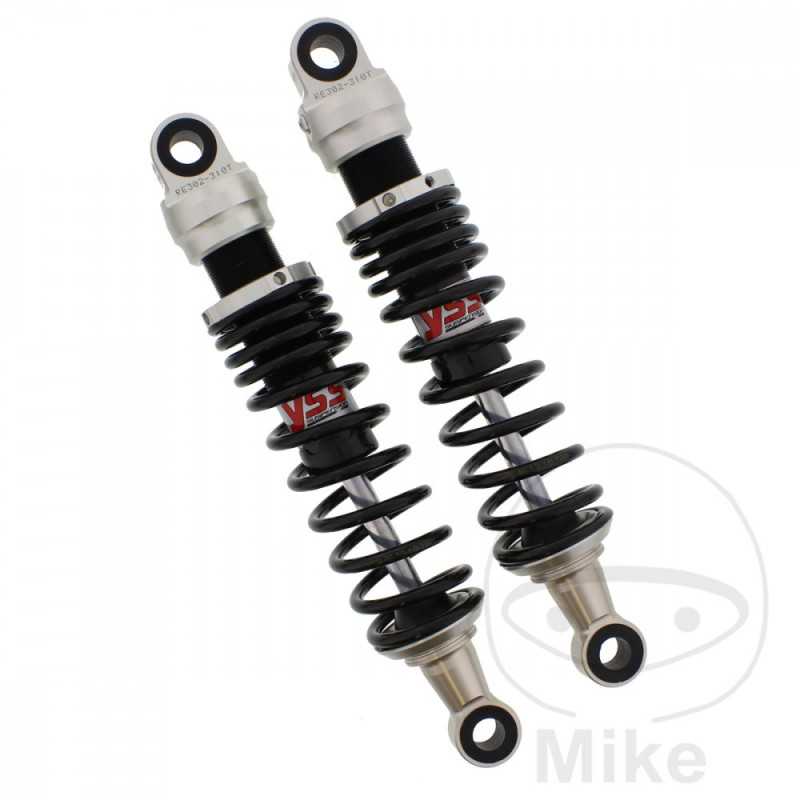

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.12

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 310MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati Pantah 500 SL 46 CV, 34 kw 2cil. 500SL-PANT Bastidores: --- 1981-1983
Ducati Pantah 600 SL 56/50 CV, 41/37 kw 2cil. 600SL-PANT Bastidores: --- 1981-1984
Ducati Pantah 600 TL 56/50 CV, 41/37 kw 2cil. 600TL-PANT Bastidores: --- 1982-1984
Ducati Pantah 650 SL 58 CV, 42,6 kw 2cil. 650SL-PANT Bastidores: --- 1983-1985
