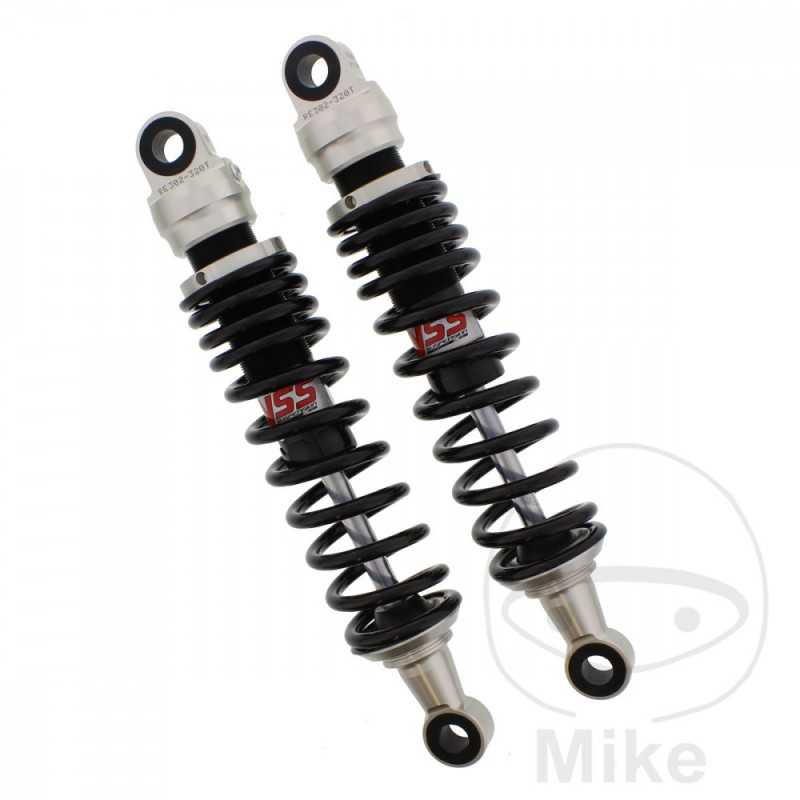

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.11

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi T3 850 California 58 CV, 43 kw 2cil. VD Bastidores: VD 11478-VD 22640 1975-1983
Moto Guzzi T4 850 58 CV, 43 kw 2cil. VD Bastidores: VD 21345-VD 26537 1980-1982
Moto Guzzi V7 750 Sport 52 CV, 38 kw 2cil. VK Bastidores: VK 11111-VK 13842 1972-1974
Suzuki VS 600 GL Intruder 45 CV, 33 kw 2cil. VN51B S Bastidores: VN51B-100001-VN51B-101639 1995
Suzuki VS 600 GL Intruder 45 CV, 33 kw 2cil. VN51B T Bastidores: VN51B-101640-VN51B-102362 1996
Suzuki VS 600 GL Intruder 45 CV, 33 kw 2cil. VN51B V Bastidores: VN51B-102363-- 1997
Suzuki VS 600 GLU Intruder 34 CV, 25 kw 2cil. VN51B S Bastidores: VN51B-100001-VN51B-101639 1995
Suzuki VS 600 GLU Intruder 34 CV, 25 kw 2cil. VN51B T Bastidores: VN51B-101640-VN51B-102362 1996
Suzuki VS 600 GLU Intruder 34 CV, 25 kw 2cil. VN51B V Bastidores: VN51B-102363-- 1997
Suzuki VS 750 GLF Intruder manillar plano 50 CV, 37 kw 2cil. VR51BD G Bastidores: VR51BD-100001-VR41BD-100926 1986
Suzuki VS 750 GLF Intruder manillar plano 50 CV, 37 kw 2cil. VR51BD H Bastidores: VR51BD-100927-VR51BD-101959 1987
Suzuki VS 750 GLF Intruder manillar plano 50 CV, 37 kw 2cil. VR51BD J Bastidores: VR51BD-101960-VR51BD-102590 1988
Suzuki VS 750 GLF Intruder manillar plano 50 CV, 37 kw 2cil. VR51BD K Bastidores: VR51BD-102591-VR51BD-103360 1989
Suzuki VS 750 GLP Intruder manillar alto 50 CV, 37 kw 2cil. VR51BD G Bastidores: VR51BD-100001-VR41BD-100926 1986
Suzuki VS 750 GLP Intruder manillar alto 50 CV, 37 kw 2cil. VR51BD H Bastidores: VR51BD-100927-VR51BD-101959 1987
Suzuki VS 750 GLP Intruder manillar alto 50 CV, 37 kw 2cil. VR51BD J Bastidores: VR51BD-101960-VR51BD-102590 1988
Suzuki VS 750 GLP Intruder manillar alto 50 CV, 37 kw 2cil. VR51BD K Bastidores: VR51BD-102591-VR51BD-103360 1989
Suzuki VS 750 GLP Intruder manillar alto 50 CV, 37 kw 2cil. VR51BD L Bastidores: VR51BD-103361-VR51BD-103721 1990
Suzuki VS 750 GLP Intruder manillar alto 50 CV, 37 kw 2cil. VR51BD M Bastidores: VR51BD-103722-- 1991
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B N Bastidores: VS52B-100001-VS52B-100964 1992
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B P Bastidores: VS52B-100965-VS52B-103399 1993
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B R Bastidores: VS52B-103400-VS52B-105928 1994
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B S Bastidores: VS52B-105929-VS52B-107724 1995
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B T Bastidores: VS52B-107725-VS52B-110088 1996
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B V Bastidores: VS52B-110089-VS52B-110866 1997
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B W Bastidores: VS52B-110867-VS52B-111992 1998
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B X Bastidores: VS52B-111993-- 1999
Suzuki VS 800 GL Intruder 50 CV, 37 kw 2cil. VS52B Y Bastidores: VS52B-500399-- 2000
Yamaha XJ 750 Seca 81 CV, 60 kw 4cil. 11M 11M Bastidores: 11M henceforth00101-11M henceforth50000 1982-1984
Yamaha XS 750 SE US Custom 74 CV, 54 kw 3cil. 3L3 3L3 Bastidores: 3L3 henceforth05101-3L3 henceforth10000 1980-1982
