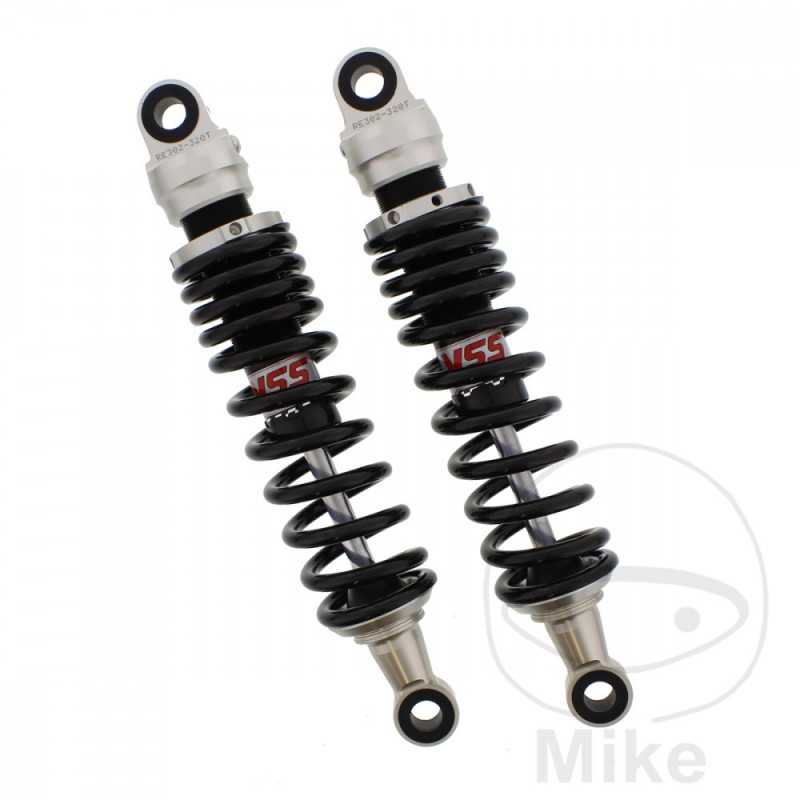

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.09

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 30-50
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 A Bastidores: SC02-4021107-SC02-4021630 1980
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 B Bastidores: SC02-4100001-SC02-4199999 1981
Honda GL 1100 D Goldwing carenado 83 CV, 61 kw 4cil. SC02 C Bastidores: SC02-4200001-SC02-4299999 1982-1983
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 A Bastidores: SC02-2000050-SC02-2021831 1980
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 B Bastidores: SC02-2100001-SC02-2199999 1981
Honda GL 1100 Goldwing 83 CV, 61 kw 4cil. SC02 C Bastidores: SC02-2200001-SC02-2299999 1982-1983
