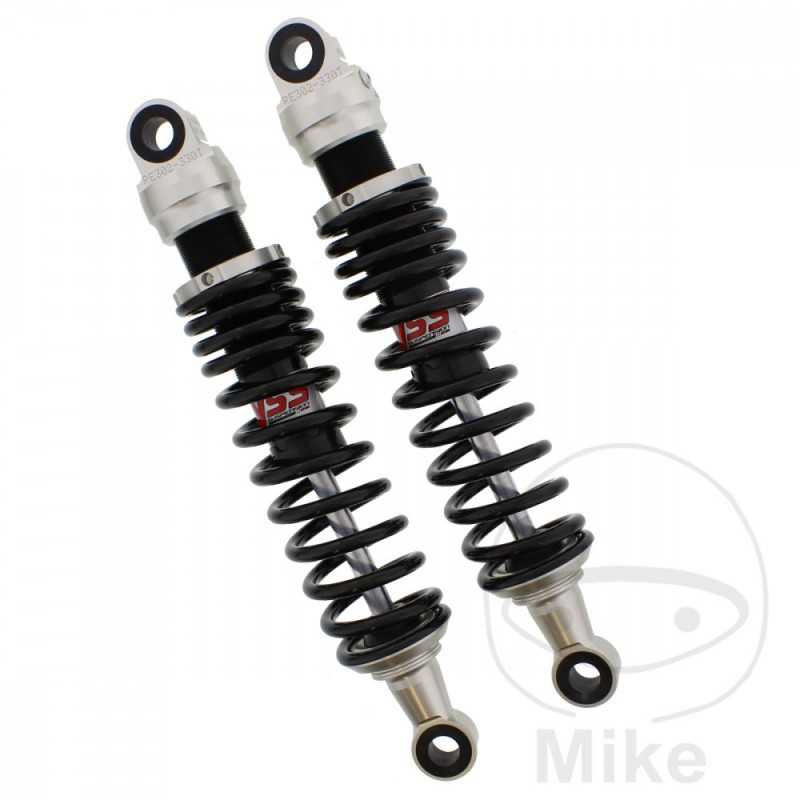

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.04

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Laverda Alpino 500 44 CV, 32,3 kw 2cil. - Bastidores: --- 1977-1978
Laverda Alpino 500 S 44 CV, 32,3 kw 2cil. - Bastidores: --- 1978-1982
Suzuki GN 400 L llanta de fundición 27 CV, 20 kw 1cil. GN400 T Bastidores: GN400-500001-GN400-506770 1980
Suzuki GN 400 L llanta de fundición 27/17 CV, 20/13 kw 1cil. GN400 X Bastidores: GN400-506771-- 1981-1982
Suzuki GN 400 llanta de radios 27 CV, 20 kw 1cil. GN400 T Bastidores: GN400-100001-- 1980
Suzuki GN 400 TD llanta de radios 27 CV, 20 kw 1cil. GN400 T Bastidores: GN400-100001-GN400-108208 1980
Suzuki GN 400 TD llanta de radios 27/17 CV, 20/13 kw 1cil. GN400 X Bastidores: GN400-108209-- 1981-1982
Suzuki GS 400 E llanta de fundición 27 CV, 20 kw 2cil. GS400 N Bastidores: GS400-502464-- 1979-1983
Suzuki GS 400 llanta de radios 27 CV, 20 kw 2cil. GS400 N Bastidores: GS400-58412-- 1979-1983
Suzuki GS 500 E 27 CV, 20 kw 4cil. GS500E N Bastidores: GS500E-102081-- 1979
Suzuki GS 550 E llanta de fundición 49 CV, 36 kw 4cil. GS550 C Bastidores: GS550-110354-GS550-120638 1978
Suzuki GS 550 E llanta de fundición 49 CV, 36 kw 4cil. GS550 N Bastidores: GS550-120639-- 1979
Suzuki GS 550 E llanta de fundición 49 CV, 36 kw 4cil. GS550E T Bastidores: GS550E-105125-- 1980
Suzuki GS 550 EG Red Suzi llanta de fundición 49 CV, 36 kw 4cil. GS550E T Bastidores: GS550E-137331-GS550E-137830 1980
Suzuki GS 550 L llanta de fundición 49 CV, 36 kw 4cil. GS550E T Bastidores: GS550E-705236-- 1980
Suzuki GS 550 M Katana 50 CV, 37 kw 4cil. GS550M X Bastidores: GS550M-100001-GS550M-105958 1981-1983
Suzuki GS 550 M Katana anti dive 50 CV, 37 kw 4cil. GS550M Z Bastidores: GS550M-105959-- 1982-1983
Suzuki GSX 250 27 CV, 20 kw 2cil. GS25X T Bastidores: GS25X-100001-GS25X-110047 1980
Suzuki GSX 250 27 CV, 20 kw 2cil. GS25X X Bastidores: GS25X-110048-- 1981
Suzuki GSX 250 E 17 CV, 13 kw 2cil. GJ53B Z Bastidores: GJ53B-100001-- 1982-1983
Suzuki GSX 250 E 27 CV, 20 kw 2cil. GS25X T Bastidores: GS25X-500001-GS25X-513253 1980
Suzuki GSX 250 E 27 CV, 20 kw 2cil. GS25X X Bastidores: GS25X-513254-- 1981
Suzuki GSX 250 EG 27 CV, 20 kw 2cil. GS25X T Bastidores: GS25X-513254-- 1980
Suzuki GSX 250 EU 17 CV, 13 kw 2cil. GS25X T Bastidores: GS25X-500001-GS25X-513253 1980
Suzuki GSX 250 EU 17 CV, 13 kw 2cil. GS25X X Bastidores: GS25X-513254-- 1981
Suzuki GSX 250 U 17 CV, 13 kw 2cil. GS25X T Bastidores: GS25X-100001-GS25X-110047 1980
Suzuki GSX 250 U 17 CV, 13 kw 2cil. GS25X X Bastidores: GS25X-110048-- 1981
