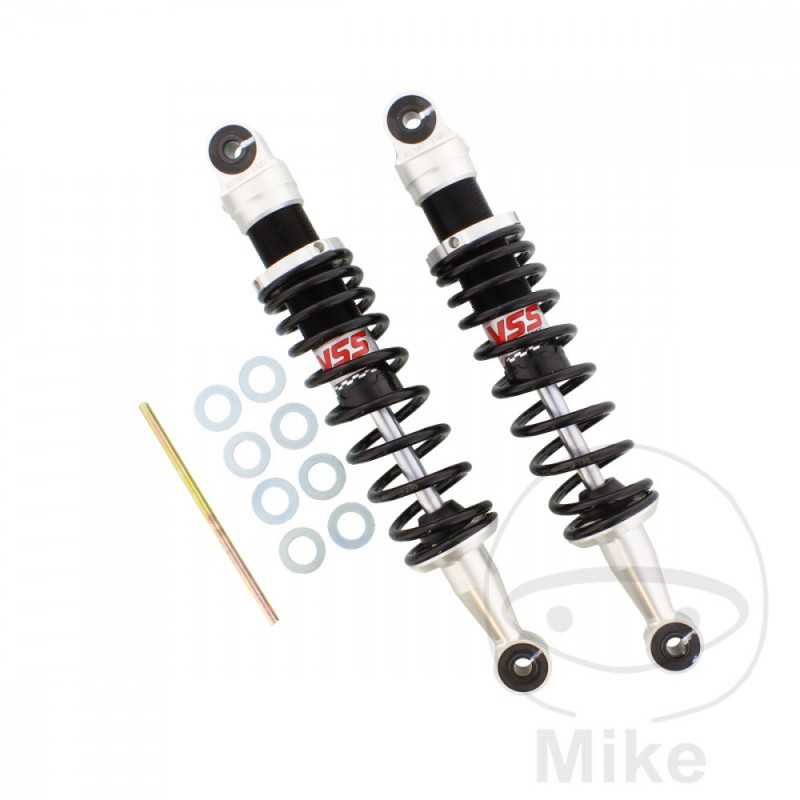

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.01

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTICS: 13-18
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda ANF 125 Innova 1cil. JC33A 3 Bastidores: MLH JC33A-25000001-MLH JC33A-49999999 2003-2004
Honda ANF 125 Innova 1cil. JC33A 5 Bastidores: MLH JC33A-55100001-MLH JC33A-55199999 2005
Honda ANF 125 Innova 1cil. JC33A 6 Bastidores: MLH JC33A-65200001-MLH JC33A-65999999 2006
Honda ANF 125 Innova 9,2 CV, 6,8 kw 1cil. JC37A 7 Bastidores: MLH JC37A-75000001-- 2007-2009
Honda ANF 125 Innova 9,2 CV, 6,8 kw 1cil. JC37A A Bastidores: MLH JC37A-A5100001-- 2010-2012
