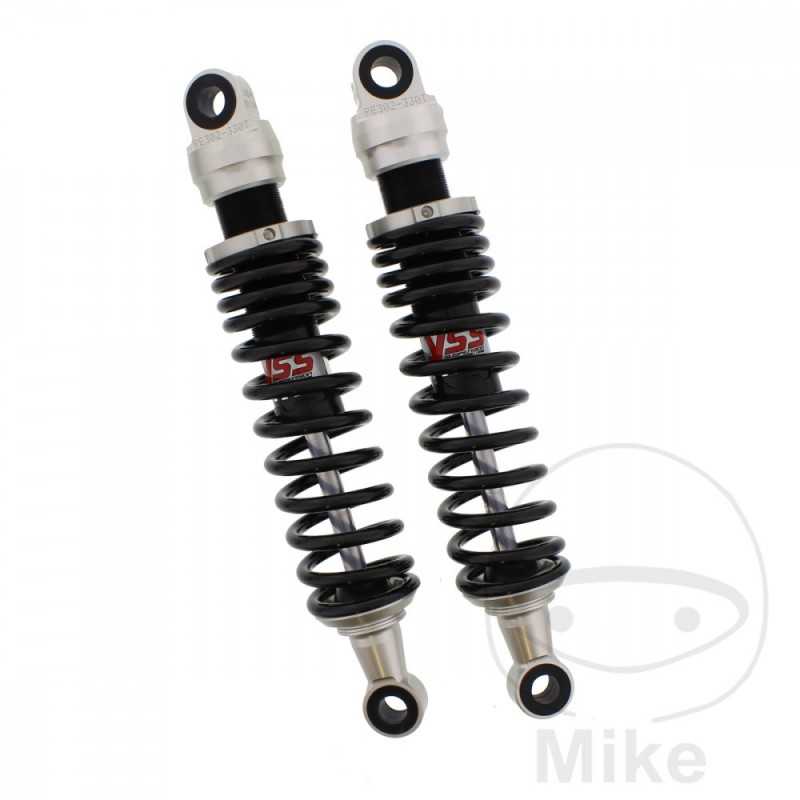

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.04.00

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 330MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CX 500 27 CV, 20 kw 2cil. CX500 Bastidores: CX500-3000006-CX500-3004905 1977-1979
Honda CX 500 27 CV, 20 kw 2cil. CX500 A Bastidores: CX500-3100004-CX500-3199999 1980
Honda CX 500 27 CV, 20 kw 2cil. CX500 B Bastidores: CX500-3200001-CX500-3299999 1981
Honda CX 500 27 CV, 20 kw 2cil. CX500 C Bastidores: CX500-3300001-CX500-3399999 1982-1983
Honda CX 500 50 CV, 37 kw 2cil. CX500 Bastidores: CX500-2003741-CX500-2050959 1977-1979
Honda CX 500 50 CV, 37 kw 2cil. CX500 A Bastidores: CX500-2200890-CX500-2299999 1980
Honda CX 500 50 CV, 37 kw 2cil. CX500 B Bastidores: CX500-2300001-CX500-2399999 1981
Honda CX 500 50 CV, 37 kw 2cil. CX500 C Bastidores: CX500-2400002-CX500-2499999 1982-1983
