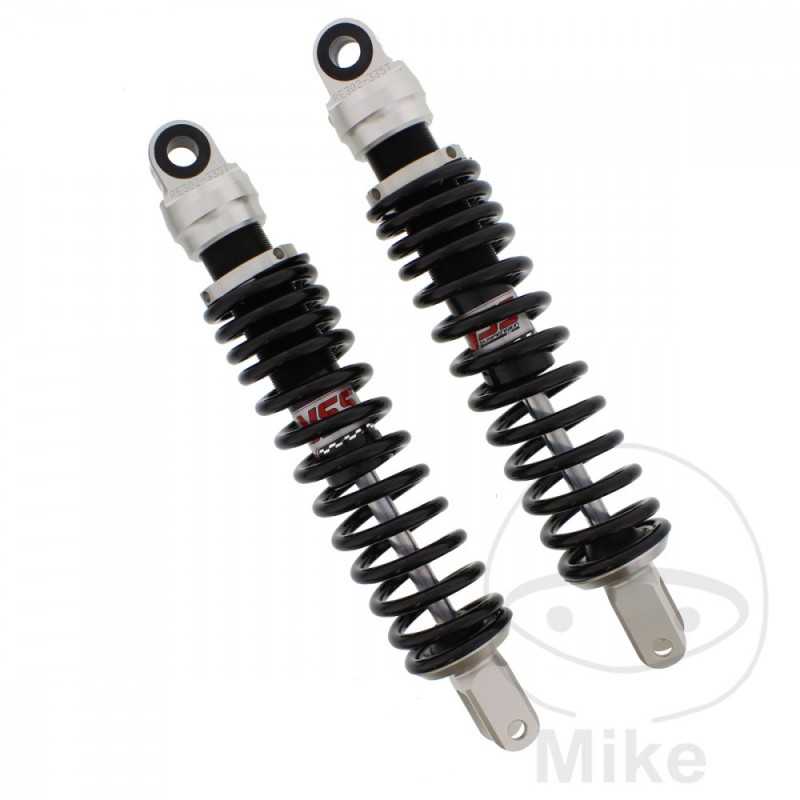

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.99

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 22 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GS 1000 E llanta de fundición 90 CV, 66 kw 4cil. GS1000 C Bastidores: GS1000-500001-GS1000-520446 1978
Suzuki GS 1000 E llanta de fundición 90 CV, 66 kw 4cil. GS1000 N Bastidores: GS1000-520447-GS1000-528746 1979
Suzuki GS 1000 E llanta de fundición 90 CV, 66 kw 4cil. GS1000 T Bastidores: GS1000-528747-- 1980
Suzuki GS 1000 G 91 CV, 67 kw 4cil. GS100G T Bastidores: GS100G-100001-GS100G-106431 1980
Suzuki GS 1000 G 91 CV, 67 kw 4cil. GS100G X Bastidores: GS100G-106432-- 1981
Suzuki GS 1000 H llanta de fundición 90 CV, 66 kw 4cil. GS1000 C Bastidores: GS1000-500001-GS1000-520446 1978
Suzuki GS 1000 H llanta de fundición 90 CV, 66 kw 4cil. GS1000 N Bastidores: GS1000-520447-GS1000-528746 1979
Suzuki GS 1000 H llanta de fundición 90 CV, 66 kw 4cil. GS1000 T Bastidores: GS1000-528747-- 1980
Suzuki GS 1000 L 90 CV, 66 kw 4cil. GS1000 N Bastidores: GS1000-700001-- 1979
Suzuki GS 1000 llanta de radios 90 CV, 66 kw 4cil. GS1000 C Bastidores: GS1000-100001-GS1000-106519 1978
Suzuki GS 1000 llanta de radios 90 CV, 66 kw 4cil. GS1000 N Bastidores: GS1000-106520-GS1000-109936 1979
Suzuki GS 1000 llanta de radios 90 CV, 66 kw 4cil. GS1000 T Bastidores: GS1000-109937-- 1980
Suzuki GS 1000 S Sport 90 CV, 66 kw 4cil. GS1000 N Bastidores: GS1000-500001-- 1979
Suzuki GS 1100 G 94 CV, 69 kw 4cil. GU71A G Bastidores: GU71A-101834-- 1986
Suzuki GSX 1100 E anti dive 100 CV, 74 kw 4cil. GU71B D Bastidores: GU71B-101747-- 1983
Suzuki GSX 1100 E anti dive 100 CV, 74 kw 4cil. GV71C G Bastidores: GV71C-101657-- 1986-1987
Suzuki GSX 1100 E llanta de fundición 100 CV, 74 kw 4cil. GS110X T Bastidores: GS110X-500001-GS110X-513755 1980
Suzuki GSX 1100 E llanta de fundición 100 CV, 74 kw 4cil. GS110X X Bastidores: GS110X-513756-- 1981
Suzuki GSX 1100 E llanta de fundición 100 CV, 74 kw 4cil. GU71B Z Bastidores: GU71B-100006-- 1982
Suzuki GSX 1100 ES semicarenado 100 CV, 74 kw 4cil. GU71B D Bastidores: GU71B-101747-- 1983
Suzuki GSX 1100 EX llanta de fundición 100 CV, 74 kw 4cil. GU71B D Bastidores: GU71B-101747-- 1983
Suzuki GSX 1100 L 95 CV, 70 kw 4cil. GS110X T Bastidores: GS110X-700001-- 1980
Suzuki GSX 1100 llanta de radios 100 CV, 74 kw 4cil. GS110X T Bastidores: GS110X-100001-GS110X-100130 1980
Suzuki GSX 1100 llanta de radios 100 CV, 74 kw 4cil. GS110X X Bastidores: GS110X-100131-- 1981
Suzuki GSX 1100 S Katana 100 CV, 74 kw 4cil. GS110X Z Bastidores: GS110X-522093-- 1982-1984
