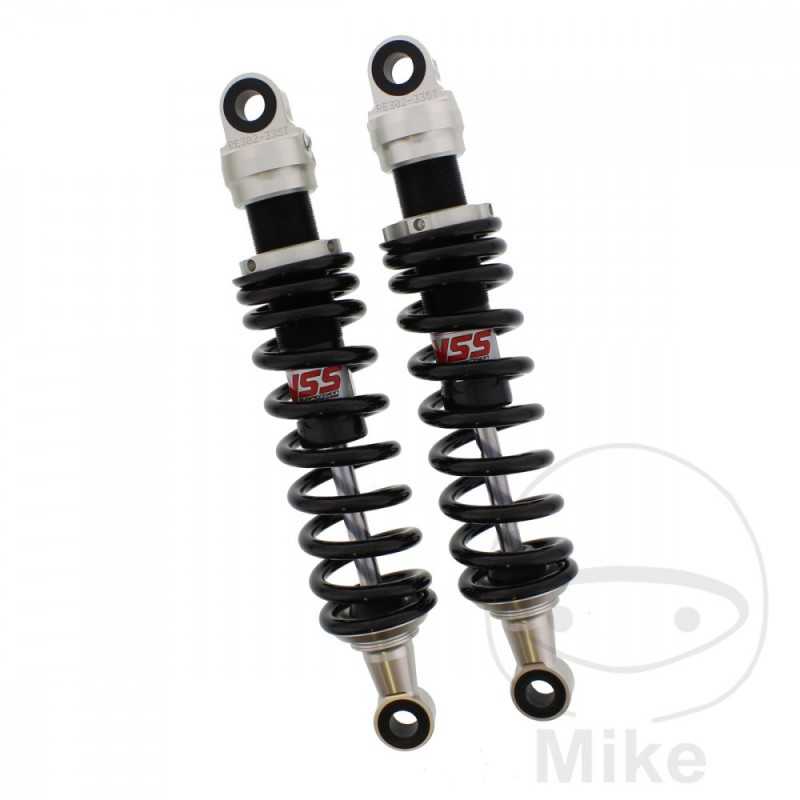

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.98

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 335MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING FEATURE: 50
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 J Bastidores: SC22-2000106-SC22-2002033 1988
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 K Bastidores: SC22-2100101-SC22-2101341 1989
Honda GL 1500 Goldwing 100 CV, 74 kw 6cil. SC22 L Bastidores: SC22-2200282-SC22-2200480 1990
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 M Bastidores: SC22-4000631-SC22-4000880 1991
Honda GL 1500 SE Goldwing 100 CV, 74 kw 6cil. SC22 N Bastidores: SC22-4100340-- 1992
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 P Bastidores: SC22-4200001-- 1993
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 R Bastidores: SC22-4300001-- 1994
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22 S Bastidores: SC22-4400001-- 1995
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B V Bastidores: 1HF SC22B-VA000001-- 1997
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B X Bastidores: 1HF SC22B-XA200001-- 1999
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22B Y Bastidores: 1HF SC22B-YA300001-- 2000
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22C T Bastidores: SC22C-TA000001-- 1996
Honda GL 1500 SE Goldwing 98 CV, 72 kw 6cil. SC22C W Bastidores: 1HF SC22C-WA100001-- 1998
