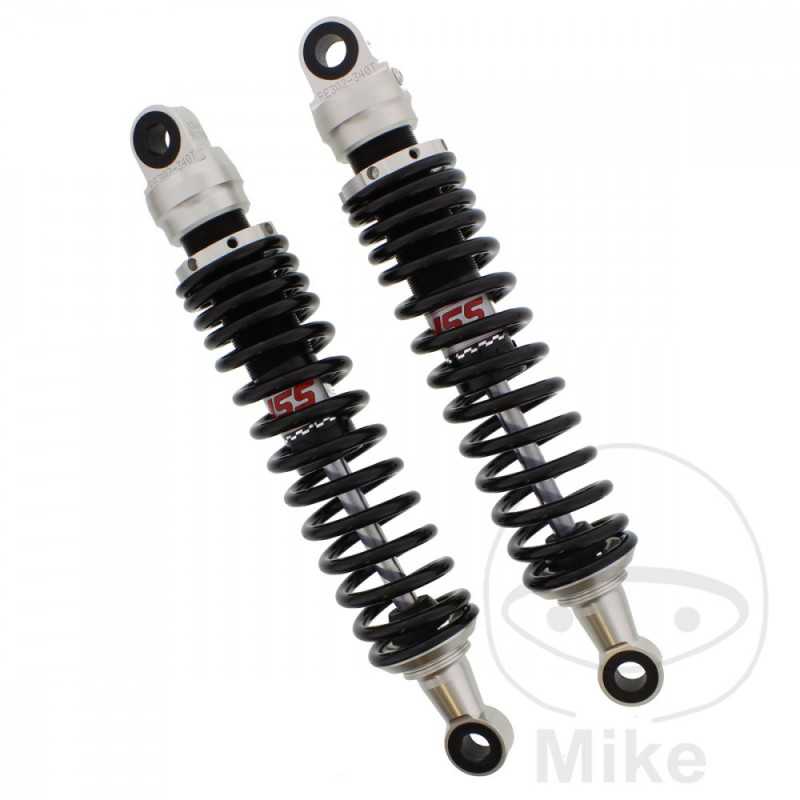

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.97

Milled aluminum body, adjustable spring strut with spring preload.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi California 1100 34/50/75 CV, 25/37/55 kw 2cil. KC Bastidores: KC 11111-KC 14214 1994-1996
Moto Guzzi California 1100 EV ie 34 CV, 25 kw 2cil. KD Bastidores: --- 2001
Moto Guzzi California 1100 EV ie 34 CV, 25 kw 2cil. KD Bastidores: --KD 115426 1998-2000
Moto Guzzi California 1100 EV ie 34 CV, 25 kw 2cil. KD Bastidores: KD 115427-- 1998-2000
Moto Guzzi California 1100 EV ie 50 CV, 37 kw 2cil. KD Bastidores: --- 2001
Moto Guzzi California 1100 EV ie 50 CV, 37 kw 2cil. KD Bastidores: --KD 115426 1998-2000
Moto Guzzi California 1100 EV ie 50 CV, 37 kw 2cil. KD Bastidores: KD 115427-- 1998-2000
Moto Guzzi California 1100 EV ie 75 CV, 55 kw 2cil. KD Bastidores: --- 2001
Moto Guzzi California 1100 EV ie 75 CV, 55 kw 2cil. KD Bastidores: --KD 115426 1998-2000
Moto Guzzi California 1100 EV ie 75 CV, 55 kw 2cil. KD Bastidores: KD 115427-- 1998-2000
