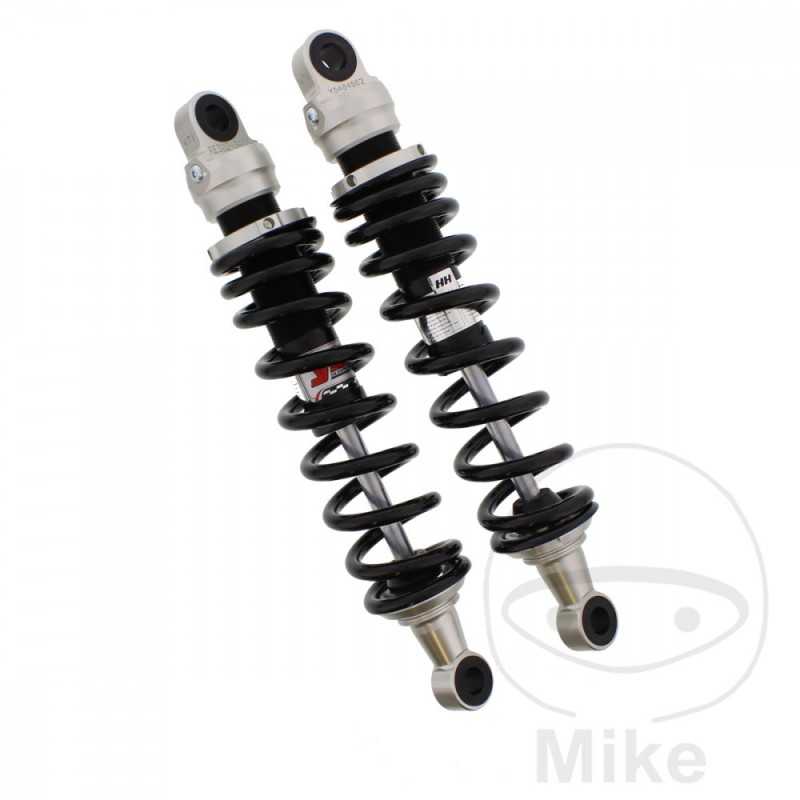

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.95

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K1 Bastidores: VX51L henceforth00504901-VX51L henceforth00505797 2001
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K2 Bastidores: VX51L henceforth00505798-VX51L henceforth00506817 2002
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L K3 Bastidores: VX51L henceforth00506818-- 2003
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L T Bastidores: VX51L-125294-VX51L-129696 1996
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L V Bastidores: VX51L-129697-VX51L-132929 1997
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L W Bastidores: VX51L-132930-VX51L-135285 1998
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L X Bastidores: VX51L-135286-- 1999
Suzuki VS 1400 GLP Intruder manillar alto 61 CV, 45 kw 2cil. VX51L Y Bastidores: VX51L henceforth00503273-VX51L henceforth00504900 2000
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L R Bastidores: VX51L-115246-VX51L-121561 1994
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51L S Bastidores: VX51L-121562-VX51L-125293 1995
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD N Bastidores: VX51LD-108040-VX51LD-110757 1992
Suzuki VS 1400 GLP Intruder manillar alto 64 CV, 47 kw 2cil. VX51LD P Bastidores: VX51LD-110758-- 1993
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L H Bastidores: VX51L-100001-VX51L-103294 1987
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51L J Bastidores: VX51L-103295-VX51L-105124 1988
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD K Bastidores: VX51LD-104562-VX51LD-105129 1989
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD L Bastidores: VX51LD-105130-VX51LD-105901 1990
Suzuki VS 1400 GLP Intruder manillar alto 67 CV, 49 kw 2cil. VX51LD M Bastidores: VX51LD-105902-VX51LD-108039 1991
Suzuki VZ 1600 M1600 Marauder 73 CV, 54 kw 2cil. VNT60BCA K4 Bastidores: VNT60BCA henceforth00001-VNT60BCA henceforth05000 2004
Suzuki VZ 1600 M1600 Marauder 73 CV, 54 kw 2cil. VNT60BCA K5 Bastidores: VNT60BCA henceforth05001-- 2005
