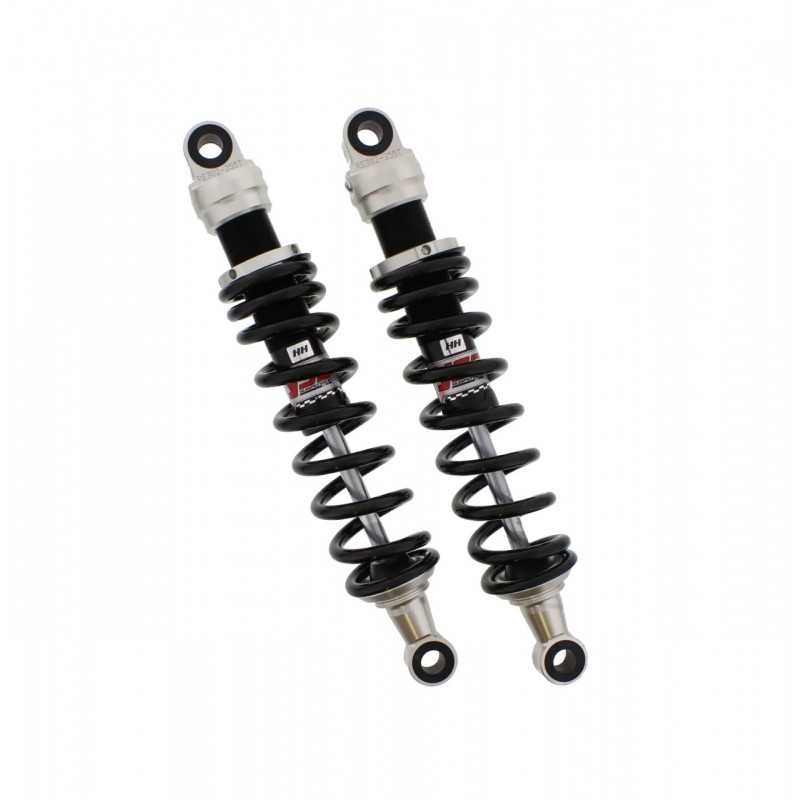

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.90

Milled aluminum body, adjustable spring strut with spring preload.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 355MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 E Bastidores: SC14-4000556-SC14-4002030 1984
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 F Bastidores: SC14-4100135-SC14-4100819 1985-1986
Honda GL 1200 D Goldwing 94 CV, 69 kw 4cil. SC14 H Bastidores: SC14-4300001-SC14-4399999 1987-1988
