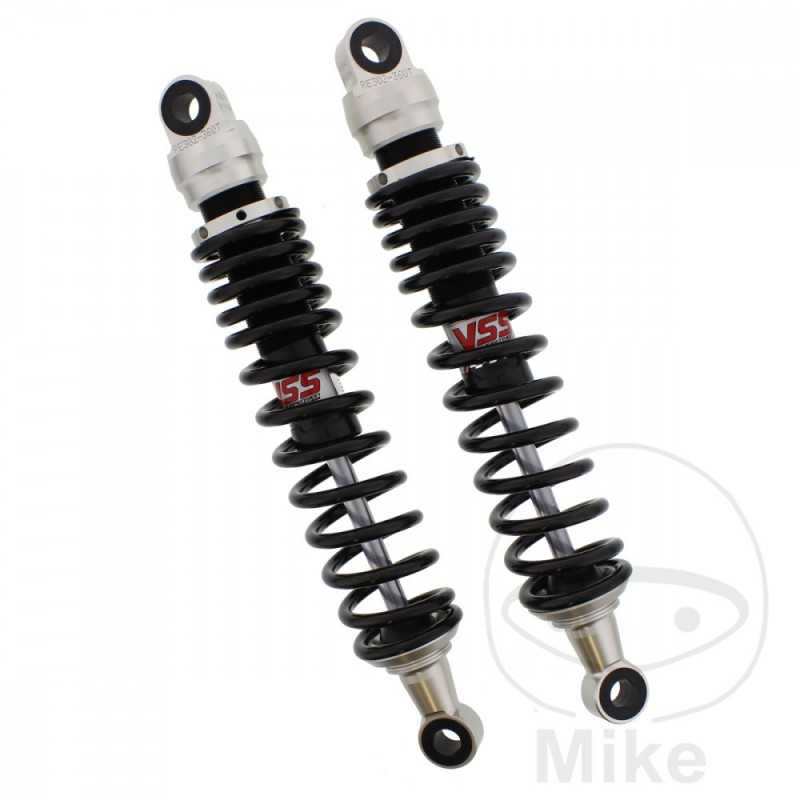

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.89

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 360MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Laverda Laverda 1000 3CL 77/78 CV, 56,6/57,3 kw 3cil. - Bastidores: --- 1976-1979
Laverda Laverda 1200 T 86 CV, 63 kw 3cil. - Bastidores: --- 1977-1979
Laverda RGS 1000 86 CV, 63 kw 3cil. - Bastidores: --- 1982-1984
Laverda RGS 1000 Corsa 95 CV, 69 kw 3cil. - Bastidores: --- 1984-1985
