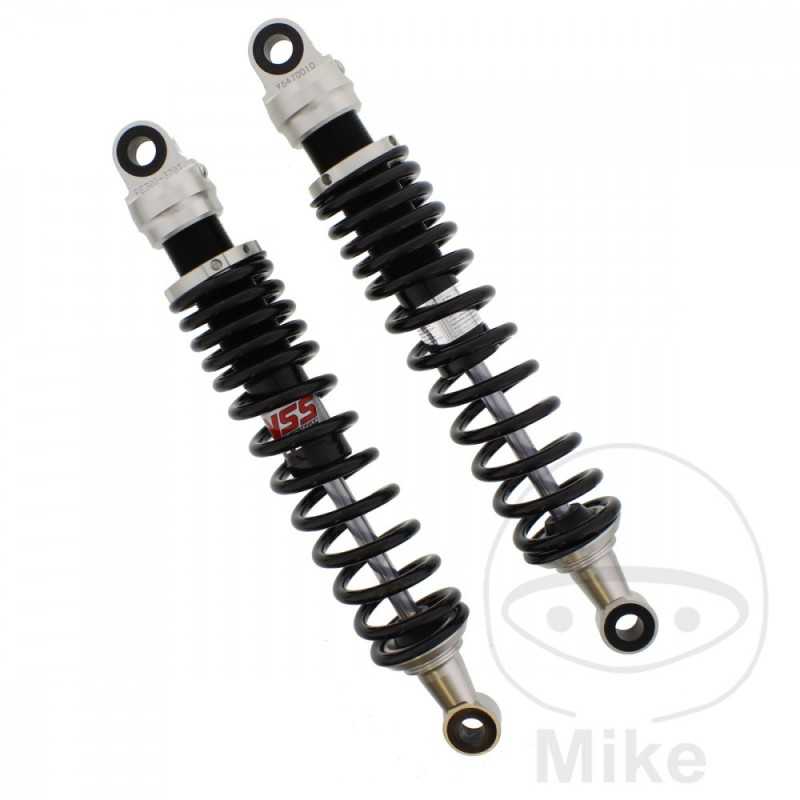

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.85

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
Length: 370mm
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 240 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 1 Bastidores: KZT30A henceforth00101-KZT30A henceforth06200 1979
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 2 Bastidores: KZT30A henceforth06201-- 1980
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 4 Bastidores: KZT30A henceforth14101-- 1982
Kawasaki Z 1300 A 120/100 CV, 88/74 kw 6cil. KZT30A 5 Bastidores: KZT30A henceforth15901-- 1983
