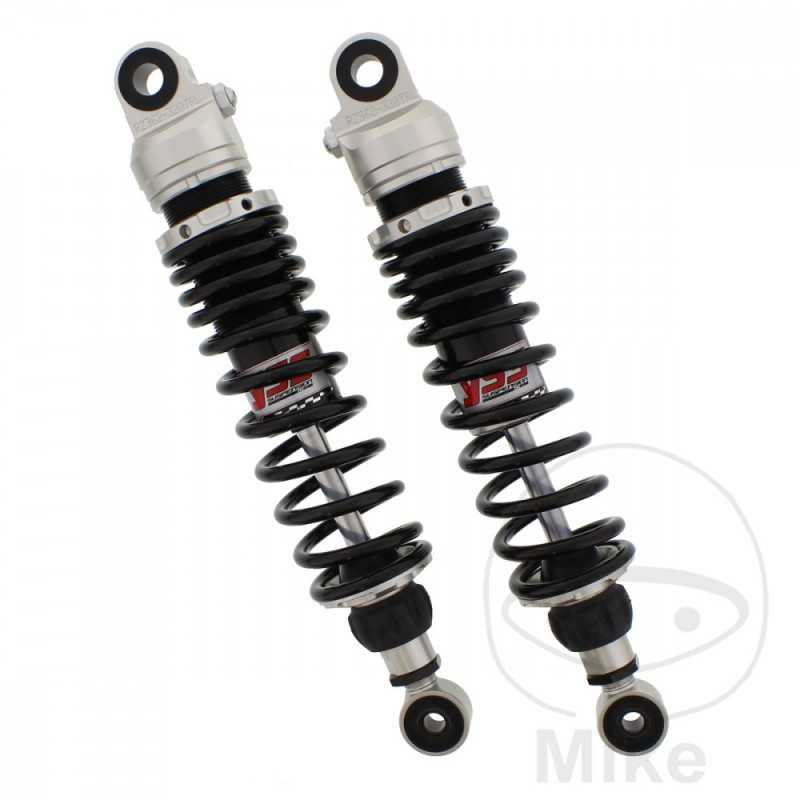

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.81

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 F Bastidores: PC15-6000001-PC15-6002535 1985
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 G Bastidores: PC15-6100001-PC15-6101702 1986
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-6200001-PC15-6200100 1987
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 F Bastidores: PC15-5000025-PC15-5001841 1985
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 G Bastidores: PC15-5100001-PC15-5101643 1986
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-5200005-PC15-5201600 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-8000002-PC15-8000201 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 J Bastidores: PC15-8100003-- 1988-1989
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-7000005-PC15-7000940 1987
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 J Bastidores: PC15-7100005-- 1988-1989
