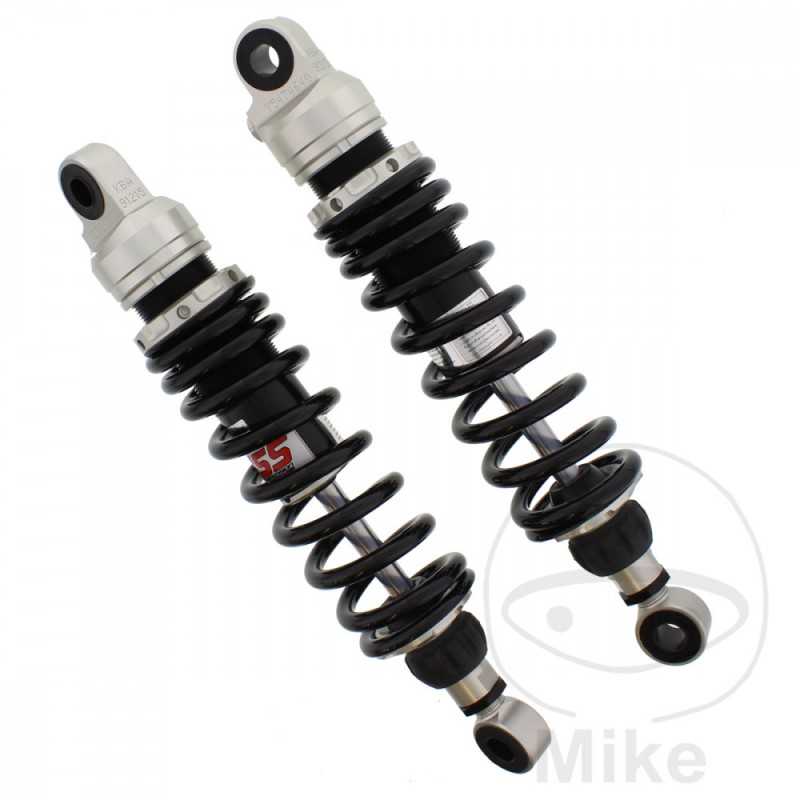

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.77

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 45-60
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki VN 1500 D Classic 64/50/34 CV, 47/37/25 kw 2cil. VNT50D 1 Bastidores: VNT50D henceforth00001-VNT50D henceforth05000 1996
Kawasaki VN 1500 D Classic 64/50/34 CV, 47/37/25 kw 2cil. VNT50D 2 Bastidores: VNT50D henceforth05001-VNT50D-999999 1997
Kawasaki VN 1500 F Classic 64/34 CV, 47/25 kw 2cil. VNT50D 1 Bastidores: VNT50D henceforth10001-VNT50D-999999 1998
Kawasaki VN 1500 FI Classic Tourer 34 CV, 25 kw 2cil. VNT50GLA L1H Bastidores: VNT50GLA henceforth28001-VNT50GLA henceforth33000 2000
Kawasaki VN 1500 FI Classic Tourer 34 CV, 25 kw 2cil. VNT50GLA L2H Bastidores: VNT50GLA henceforth33001-VNT50GLA henceforth36000 2001
Kawasaki VN 1500 FI Classic Tourer 34 CV, 25 kw 2cil. VNT50GLA L3H Bastidores: VNT50GLA henceforth36001-VNT50GLA henceforth40000 2002
Kawasaki VN 1500 FI Classic Tourer 34 CV, 25 kw 2cil. VNT50GLA L4H Bastidores: VNT50GLA henceforth40001-VNT50GLA-999999 2003-2004
Kawasaki VN 1500 FI Classic Tourer 65 CV, 48 kw 2cil. VNT50GLA L1H Bastidores: VNT50GLA henceforth28001-VNT50GLA henceforth33000 2000
Kawasaki VN 1500 FI Classic Tourer 65 CV, 48 kw 2cil. VNT50GLA L2H Bastidores: VNT50GLA henceforth33001-VNT50GLA henceforth36000 2001
Kawasaki VN 1500 FI Classic Tourer 65 CV, 48 kw 2cil. VNT50GLA L3H Bastidores: VNT50GLA henceforth36001-VNT50GLA henceforth40000 2002
Kawasaki VN 1500 FI Classic Tourer 65 CV, 48 kw 2cil. VNT50GLA L4H Bastidores: VNT50GLA henceforth40001-VNT50GLA-999999 2003-2004
Kawasaki VN 1500 FI N Classic 65/34 CV, 48/25 kw 2cil. VNT50NNA 1H Bastidores: VNT50NNA henceforth00001-VNT50NNA henceforth09000 2000
Kawasaki VN 1500 FI N Classic 65/34 CV, 48/25 kw 2cil. VNT50NNA 2H Bastidores: VNT50NNA henceforth09001-VNT50NNA henceforth15000 2001
Kawasaki VN 1500 FI N Classic 65/34 CV, 48/25 kw 2cil. VNT50NNA 3H Bastidores: VNT50NNA henceforth15001-VNT50NNA-999999 2002
Kawasaki VN 1500 G Classic Tourer 64 CV, 47 kw 2cil. VNT50GGA 1 Bastidores: VNT50GGA henceforth00001-VNT50GGA henceforth10000 1998
Kawasaki VN 1500 G Classic Tourer 64/34 CV, 47/25 kw 2cil. VNT50GGA 2 Bastidores: VNT50GGA henceforth10001-VNT50GGA-999999 1999
Kawasaki VN 1500 H Classic Tourer 64 CV, 47 kw 2cil. VNT50GHA 1 Bastidores: VNT50GHA henceforth00001-VNT50GHA henceforth10000 1998
Kawasaki VN 1500 H Classic Tourer 64/34 CV, 47/25 kw 2cil. VNT50GHA 2 Bastidores: VNT50GHA henceforth10001-VNT50GHA-999999 1999
