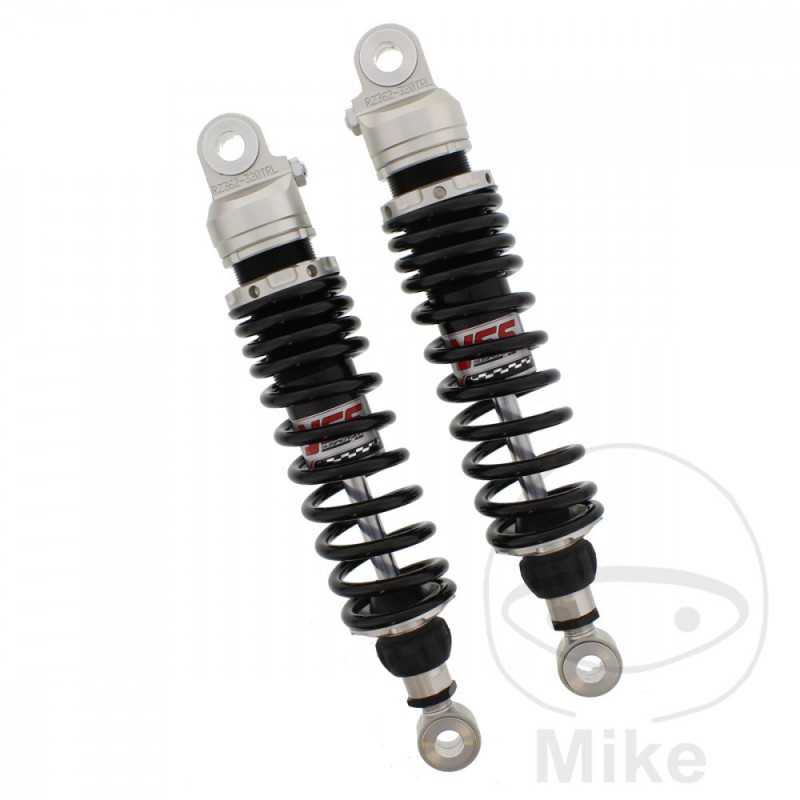

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.76

Milled aluminum body, spring strut on spring preload and rebound (30 clicks) adjustable.

The spring preload is locked with a grub screw.

The length of the damper is adjustable by + -5 mm.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi Le Mans 850 I 70 CV, 51 kw 2cil. VE Bastidores: VE 11111-VE 13040 1975-1976
Moto Guzzi Le Mans 850 I 70 CV, 51 kw 2cil. VE Bastidores: VE 13041-VE 18146 1977-1978
Moto Guzzi Le Mans 850 II 74 CV, 54 kw 2cil. VE Bastidores: VE 18147-VE 25481 1978-1980
Moto Guzzi SP 1000 I 61 CV, 45 kw 2cil. VG Bastidores: VG 18781-VG 25693 1978-1983
Moto Guzzi SP 1000 II 67 CV, 49 kw 2cil. VH Bastidores: VH 11111-VH 12229 1984
Moto Guzzi V 1000 G5 61 CV, 45 kw 2cil. VG Bastidores: VG 18744-VG 25693 1978-1985
Moto Guzzi V 1000 I Convert 61 CV, 45 kw 2cil. VG Bastidores: VG 11111-VG 25693 1975-1984
Moto Guzzi V65 650 49 CV, 36 kw 2cil. PG Bastidores: PG 11111-- 1981-1987
Moto Guzzi V65 650 SP 49 CV, 36 kw 2cil. PG Bastidores: PG 30000-- 1981-1987
