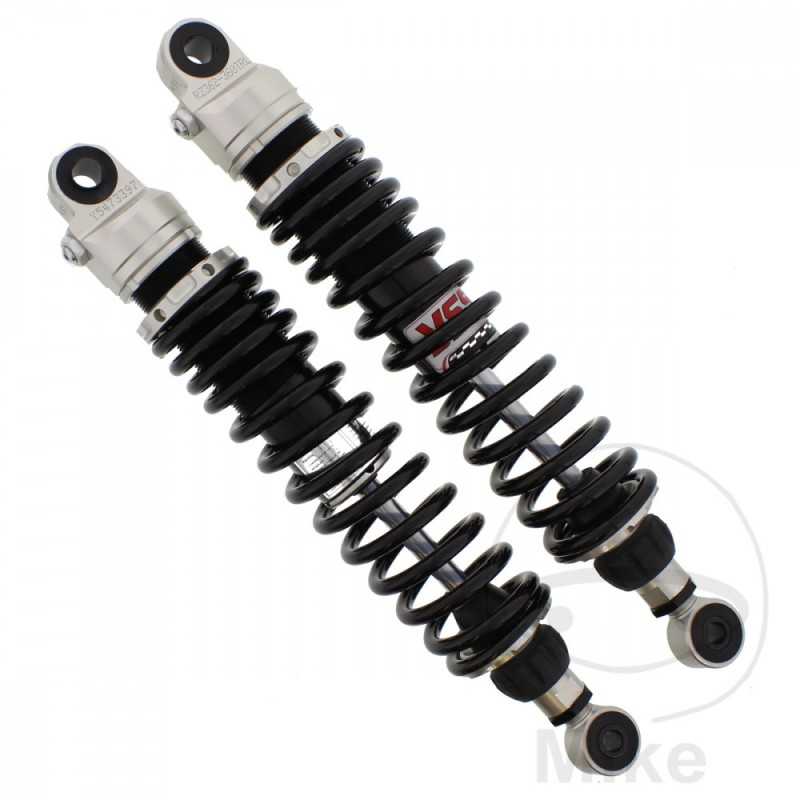

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.69

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 360MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K2 Bastidores: BN1111 henceforth0100001-BN1111 henceforth0107357 2002
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K3 Bastidores: BN1111 henceforth0107358-BN1111 henceforth0110569 2003
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K4 Bastidores: BN1111 henceforth0110570-BN1111 henceforth0112803 2004
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K5 Bastidores: BN1111 henceforth0112804-BN1111 henceforth0114964 2005
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K6 Bastidores: BN1111 henceforth0114965-BN1111 henceforth0117192 2006-2007
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K2 Bastidores: BN2111 henceforth0100001-- 2002
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K3 Bastidores: BN2111 henceforth0100001-- 2003
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K4 Bastidores: BN2111 henceforth0100001-- 2004
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K5 Bastidores: BN2111 henceforth0100001-- 2005
