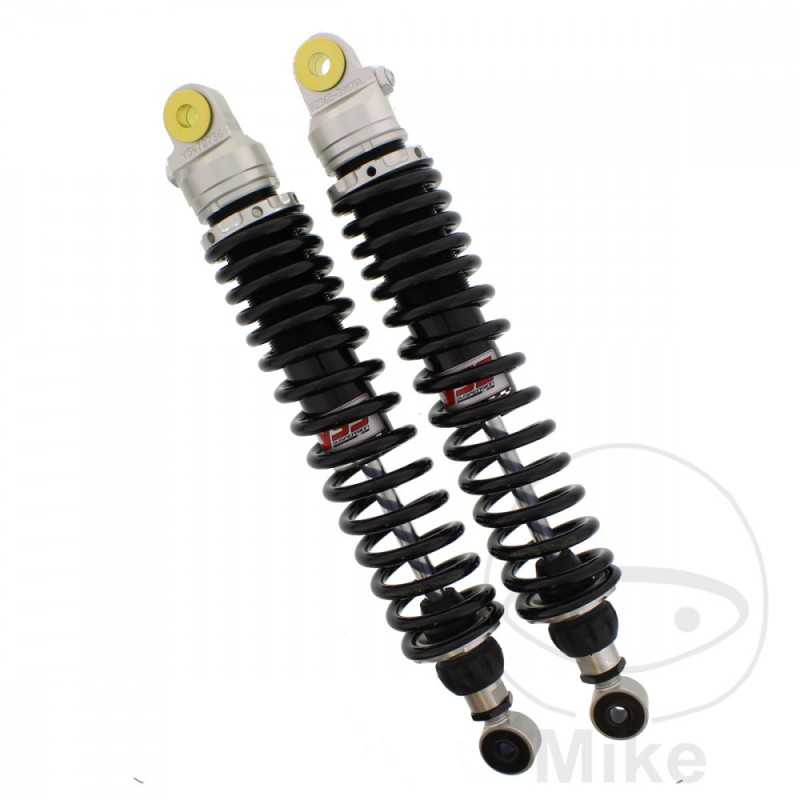

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.65

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 395MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 260 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 185 S 10 CV, 7,4 kw 1cil. L185S A Bastidores: L185S-9100001-L185S-9199999 1980
Honda XL 185 S 10 CV, 7,4 kw 1cil. L185S B Bastidores: L185S-9200001-L185S-9299999 1981-1983
Honda XL 185 S 10 CV, 7,4 kw 1cil. L185S Z Bastidores: L185S-9000013-L185S-9001215 1979
Honda XL 185 S 16 CV, 12 kw 1cil. L185S A Bastidores: L185S-5100352-L185S-5103903 1980
Honda XL 185 S 16 CV, 12 kw 1cil. L185S B Bastidores: L185S-5200007-L185S-5299999 1981-1983
Honda XL 185 S 16 CV, 12 kw 1cil. L185S Z Bastidores: L185S-5005105-L185S-5018892 1979
