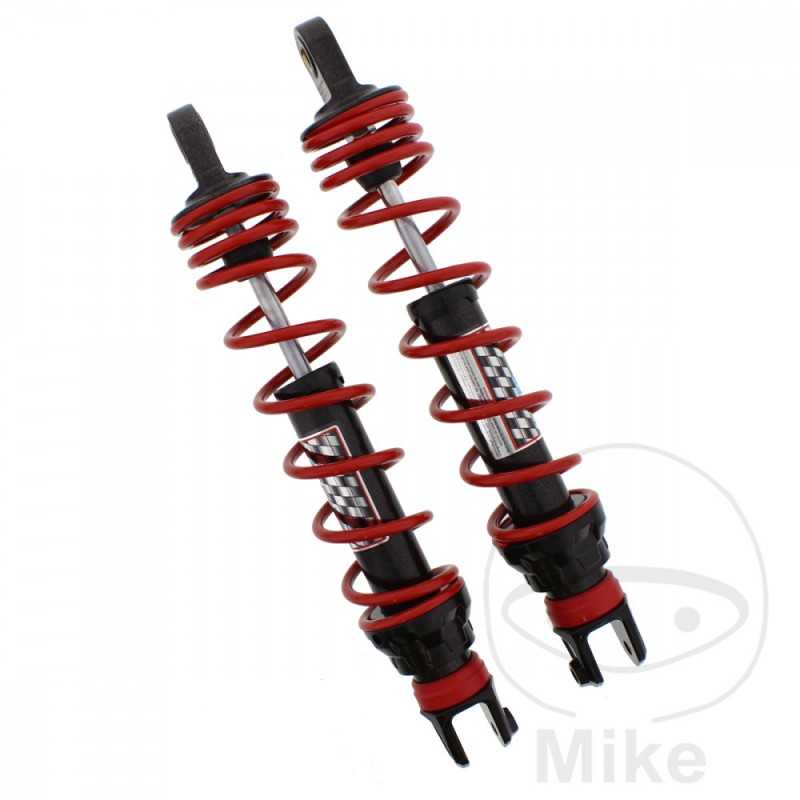

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.61

Gas pressure shock absorber with steel housing, spring preload adjustable in 5 locking points.



Includes adjustment tool.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 12 MM
LENGTH: 340MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: SPRING PRELOAD
SPRING CHARACTERISTIC: 30-50
SPRING LENGTH: 140 MM
SPRING DIAMETER: 38/40 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 22 MM
PISTON ROD DIAMETER: 10 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE787 2CM2 Bastidores: SE787 henceforth68001-- 2015
Yamaha MW 125 A Tricity ABS 11 CV, 8,1 kw 1cil. SE78K 2CMP Bastidores: SE78K-151501-- 2016
Yamaha MW 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR71 Bastidores: SEC21 henceforth01001-- 2017
Yamaha MW 125 A Tricity ABS 12,2 CV, 9,1 kw 1cil. SEC21 BR77 Bastidores: SEC21 henceforth02173-- 2018-2019
Yamaha MW 125 C Tricity MWS125-C 12,2 CV, 9,1 kw 1cil. SEC24 BU51 Bastidores: SEC24 henceforth13201-- 2017
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE782 2CM1 Bastidores: SE782 henceforth19204-- 2014-2015
Yamaha MW 125 Tricity 11 CV, 8,1 kw 1cil. SE78F 2CMJ Bastidores: SE78F-131901-- 2016
Yamaha MWS 155 A Tricity ABS 15 CV, 11 kw 1cil. SG381 BB81 Bastidores: SG381 henceforth55003-- 2016-2017
Yamaha MWS 155 A Tricity ABS 15 CV, 11 kw 1cil. SG381 BB89 Bastidores: SG381 henceforth57231-- 2018-2019
Yamaha MWS 155 A Tricity ABS 15 CV, 11 kw 1cil. SG381 BB8N Bastidores: SG381 henceforth59185-- 2020
Yamaha MWS 155 A Tricity MWS150-A ABS 15 CV, 11 kw 1cil. SG381 BB8N Bastidores: SG381 henceforth59185-- 2021
