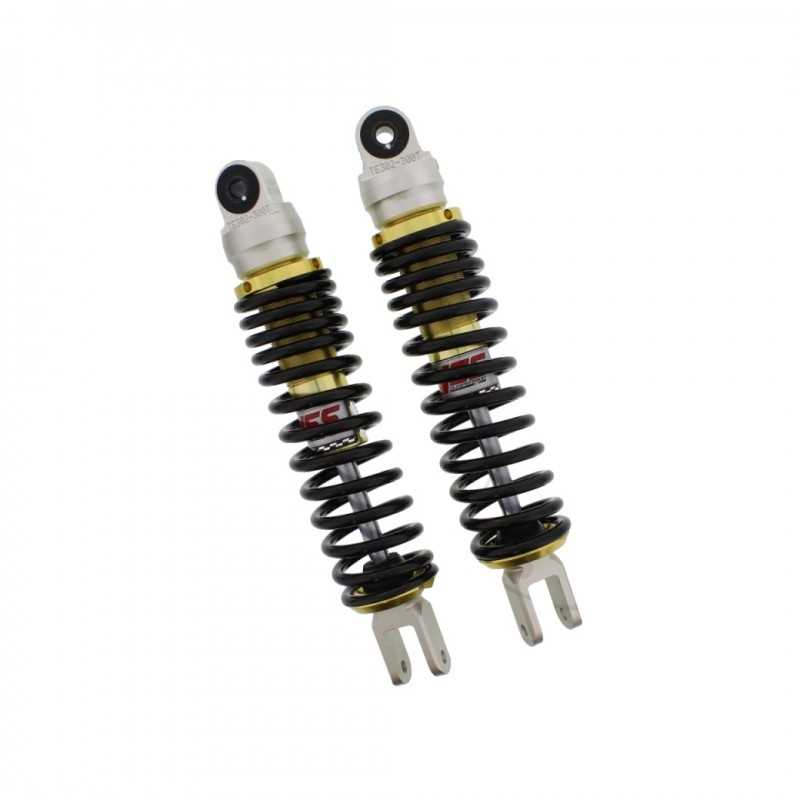

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.57

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 300 mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 2 Bastidores: ZDC JF10A henceforth2F000001-ZDC JF10A henceforth2F049999 2002
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 3 Bastidores: ZDC JF10A henceforth3F050001-ZDC JF10A henceforth3F099999 2003
Honda SES 125 Dylan 13,6 CV, 10 kw 1cil. JF10A 4 Bastidores: ZDC JF10A henceforth4F070001-- 2004-2006
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 5 Bastidores: ZDC JF14A henceforth5F000001-ZDC JF14A henceforth5F999999 2005
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 6 Bastidores: ZDC JF14A henceforth6F050001-ZDC JF14A henceforth6F999999 2006
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 7 Bastidores: ZDC JF14A henceforth7F150001-ZDC JF14A henceforth7F999999 2007
Honda SH 125 i DT 13,6 CV, 10 kw 1cil. JF14A 8 Bastidores: ZDC JF14A henceforth8F200001-- 2008
SYM HD 200 DD 15,9 CV, 11,7 kw 1cil. LH18W5-6-SE Bastidores: --- 2007-2008
SYM HD 200 DD ie Evo 15,7 CV, 11,5 kw 1cil. LH18W7-6 Bastidores: --- 2008-2010
SYM HD 200 DT 15,7 CV, 11,5 kw 1cil. LH18W-6 Bastidores: --- 2004-2009
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DS6 Bastidores: SE021-300004-SE021-303903 1998
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DS6 Bastidores: SE021-303955-- 1999
Yamaha YP 125 R Majesty 11,4 CV, 8,4 kw 1cil. SE021 5DSH Bastidores: SE021-4305104-- 2000
Yamaha YP 125 R(D) Majesty 11,4 CV, 8,4 kw 1cil. SE061 5NR1 Bastidores: SE061 henceforth01240-SE061 henceforth11939 2001
Yamaha YP 125 R(D) Majesty 11,4 CV, 8,4 kw 1cil. SE061 5NR8 Bastidores: SE061 henceforth12137-SE061 henceforth15088 2002
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE066 5XL5 Bastidores: SE066 henceforth17068-- 2005
Yamaha YP 125 R(E) Majesty 11,6 CV, 8,5 kw 1cil. SE066 5XL9 Bastidores: SE066 henceforth31536-SE066 henceforth41966 2006
Yamaha YP 125 R(E) Majesty 12,7 CV, 9,4 kw 1cil. SE066 5XL1 Bastidores: SE066 henceforth00113-SE066 henceforth06877 2003
Yamaha YP 125 R(E) Majesty 12,7 CV, 9,4 kw 1cil. SE066 5XL3 Bastidores: SE066 henceforth06878-- 2004
