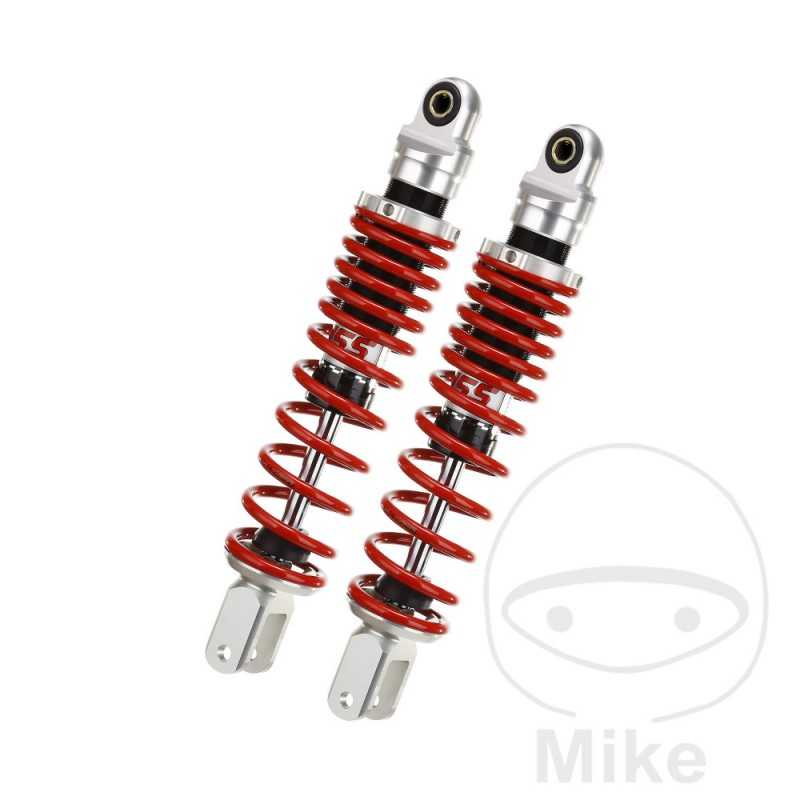

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.56

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 310MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 14-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A A Bastidores: MLH JF28A-A5000001-MLH JF28A-A5999999 2010-2011
Honda PCX 125 EX2 WW 125 CBS 11,7 CV, 8,6 kw 1cil. JF28A C Bastidores: MLH JF28A-A5200001-MLH JF28A-A5299999 2012-2014
