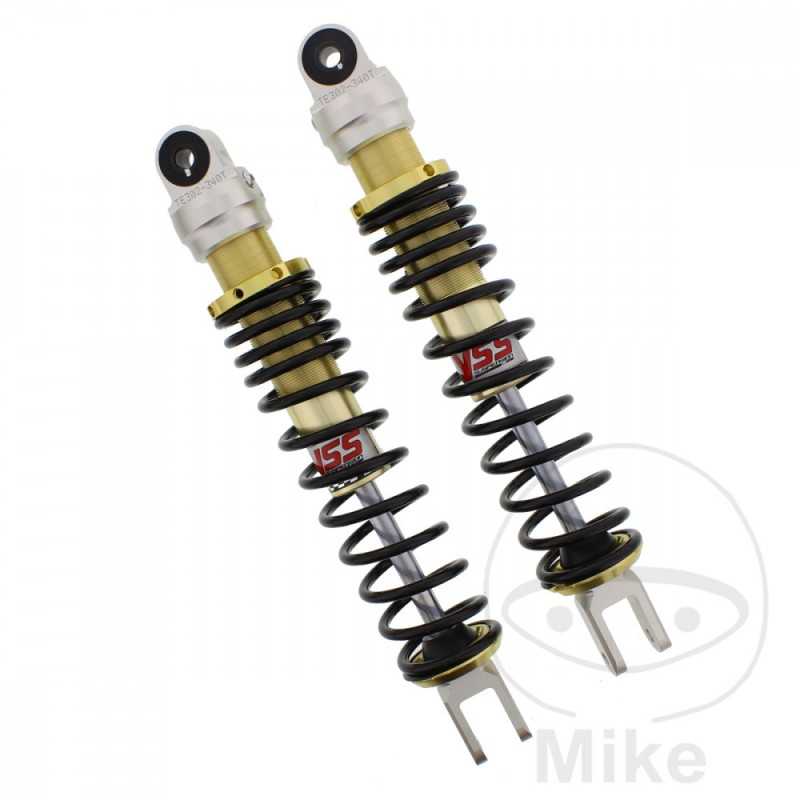

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.53

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
LENGTH: 340MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 8-12
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B91 Bastidores: SE321 henceforth00250-SE321 henceforth13650 2006
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B93 Bastidores: SE321 henceforth15786-- 2007
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B95 Bastidores: SE321 henceforth37945-- 2008
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B97 Bastidores: SE321 henceforth59054-- 2009
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE321 1B99 Bastidores: SE321 henceforth59262-- 2009
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE541 39D1 Bastidores: SE541 henceforth00001-- 2010
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE541 39D5 Bastidores: SE541 henceforth12191-- 2011
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE541 39DB Bastidores: SE541 henceforth23021-- 2012
Yamaha YP 125 R X-Max 14,1 CV, 10,4 kw 1cil. SE641 2ABA Bastidores: SE641 henceforth02001-- 2013
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DM1 Bastidores: SE681 henceforth00090-- 2014
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DM7 Bastidores: SE681 henceforth05101-- 2014
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DM9 Bastidores: SE681 henceforth13101-- 2015
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE681 2DME Bastidores: SE681 henceforth19101-- 2016
Yamaha YP 125 R X-Max 14,3 CV, 10,55 kw 1cil. SE686 2DM5 Bastidores: SE686 henceforth00101-- 2015
Yamaha YP 125 R X-Max Momodesign 14 CV, 10,4 kw 1cil. SE649 2ABG Bastidores: SE649 henceforth00101-- 2013-2015
Yamaha YP 125 R X-Max Sport 14 CV, 10,4 kw 1cil. SE546 39DD Bastidores: SE546 henceforth01951-- 2012-2013
Yamaha YP 125 R X-Max Sport 14,1 CV, 10,4 kw 1cil. SE546 39D7 Bastidores: SE546 henceforth00001-- 2011
Yamaha YP 125 RA Iron Max ABS 14,3 CV, 10,55 kw 1cil. SE688 2DMJ Bastidores: SE688 henceforth00101-- 2016
Yamaha YP 125 RA Iron Max ABS 14,3 CV, 10,55 kw 1cil. SEE64 BL24 Bastidores: SEE64 henceforth00541-- 2019-2020
Yamaha YP 125 RA X-Max ABS 12 CV, 9 kw 1cil. SEH31 B9Y1 Bastidores: SEH31 henceforth00080-- 2021
Yamaha YP 125 RA X-Max ABS 12,2 CV, 9,1 kw 1cil. - B9Y4 Bastidores: --- 2022
Yamaha YP 125 RA X-Max ABS 12,2 CV, 9,1 kw 1cil. - B9Y5 Bastidores: --- 2022
Yamaha YP 125 RA X-Max ABS 14,1 CV, 10,4 kw 1cil. SE467 2ABE Bastidores: SE467 henceforth00101-- 2013
Yamaha YP 125 RA X-Max ABS 14,1 CV, 10,4 kw 1cil. SE544 39D2 Bastidores: SE544 henceforth00301-- 2011-2012
Yamaha YP 125 RA X-Max ABS 14,1 CV, 10,4 kw 1cil. SE644 2ABC Bastidores: SE644 henceforth02001-- 2013
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE684 2DM2 Bastidores: SE684 henceforth00097-- 2014
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE684 2DMA Bastidores: SE684 henceforth05101-- 2015
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE684 2DMG Bastidores: SE684 henceforth10201-- 2016
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SE687 2DM6 Bastidores: SE687 henceforth00101-- 2015
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SEC31 2DMD Bastidores: SEC31 henceforth00101-- 2017
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SEE61 BL21 Bastidores: SEE61 henceforth00080-- 2018
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SEE61 BL25 Bastidores: SEE61 henceforth20143-- 2019
Yamaha YP 125 RA X-Max ABS 14,3 CV, 10,55 kw 1cil. SEE61 BL27 Bastidores: SEE61 henceforth30417-- 2020
Yamaha YP 125 RA X-Max Business ABS 14,1 CV, 10,4 kw 1cil. SE547 39D8 Bastidores: SE547 henceforth00001-- 2011
Yamaha YP 125 RA X-Max Business ABS 14,1 CV, 10,4 kw 1cil. SE547 39DE Bastidores: SE547 henceforth02601-- 2012-2013
Yamaha YP 125 RA X-Max Tech Max ABS 12 CV, 9 kw 1cil. SEH32 B9Y3 Bastidores: SEH32 henceforth00110-- 2021
Yamaha YP 125 RA X-Max Tech Max ABS 12,2 CV, 9,1 kw 1cil. - Bastidores: --- 2022
Yamaha YP 125 RA X-Max Tech Max ABS 14,3 CV, 10,55 kw 1cil. SEE65 BL26 Bastidores: SEE65 henceforth00101-- 2020
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG161 1C01 Bastidores: SG161 henceforth00020-- 2005
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG161 1C03 Bastidores: SG161 henceforth09989-- 2006
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG162 1C04 Bastidores: SG162 henceforth04420-- 2007
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG162 1C05 Bastidores: SG162 henceforth22011-SG162 henceforth31832 2008
Yamaha YP 250 R X-Max 20 CV, 14,8 kw 1cil. SG162 1C06 Bastidores: SG162 henceforth47553-- 2009
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG221 37P3 Bastidores: SG221 henceforth16361-- 2011
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG221 37P6 Bastidores: SG221 henceforth26611-- 2012
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG257 1YS6 Bastidores: SG257 henceforth00101-- 2013
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG261 2DL1 Bastidores: SG261 henceforth00086-- 2014
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG261 2DL5 Bastidores: SG261 henceforth05101-- 2015
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG261 2DL8 Bastidores: SG261 henceforth10101-- 2016
Yamaha YP 250 R X-Max 20,4 CV, 15 kw 1cil. SG265 2DL4 Bastidores: SG265 henceforth00101-- 2015
Yamaha YP 250 R X-Max 21,2 CV, 15,6 kw 1cil. SG221 37P1 Bastidores: SG221 henceforth00001-- 2010
Yamaha YP 250 R X-Max Black Max 21,2 CV, 15,6 kw 1cil. SG162 1C07 Bastidores: SG162 henceforth47598-- 2009
Yamaha YP 250 R X-Max Momodesign 20,4 CV, 15 kw 1cil. SG257 1YS9 Bastidores: SG257 henceforth00106-- 2013-2015
Yamaha YP 250 R X-Max Sport 20,4 CV, 15 kw 1cil. SG224 37P5 Bastidores: SG224 henceforth00001-- 2011
Yamaha YP 250 R X-Max Sport 20,4 CV, 15 kw 1cil. SG224 37P8 Bastidores: SG224 henceforth03001-- 2012-2014
Yamaha YP 250 RA Iron Max ABS 20,4 CV, 15 kw 1cil. SG266 2DLB Bastidores: SG266 henceforth00101-- 2016
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG222 37P4 Bastidores: SG222 henceforth00005-- 2011
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG222 37P7 Bastidores: SG222 henceforth04806-- 2012
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG252 1YS7 Bastidores: SG252 henceforth02001-- 2013
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG262 2DL2 Bastidores: SG262 henceforth00091-- 2014
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG262 2DL6 Bastidores: SG262 henceforth03101-- 2015
Yamaha YP 250 RA X-Max ABS 20,4 CV, 15 kw 1cil. SG262 2DL9 Bastidores: SG262 henceforth11101-- 2016
