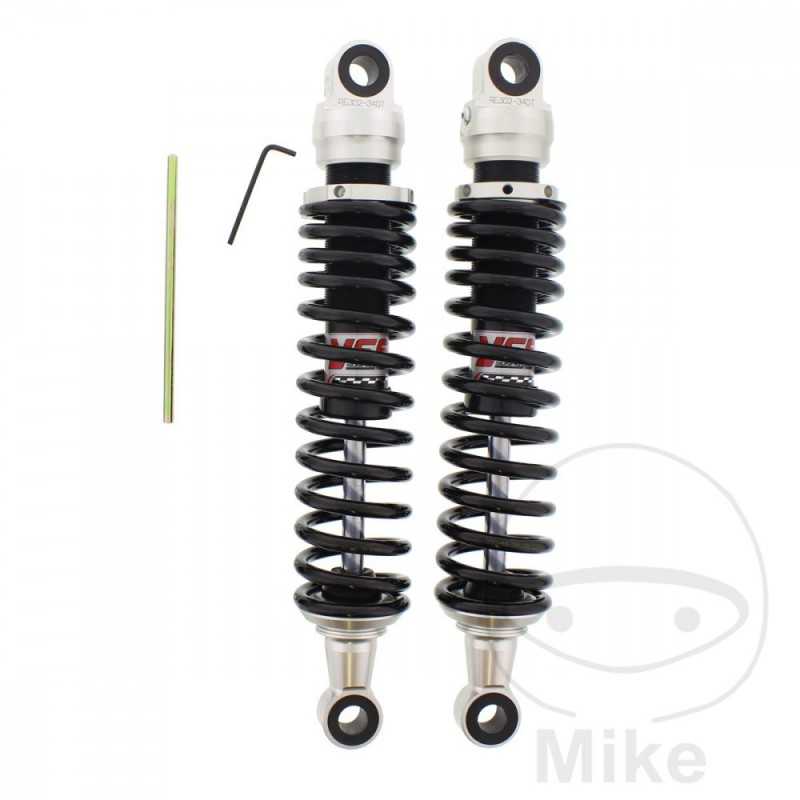

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.46

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked with a grub screw.

The configuration tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki ZL 1000 A Eliminator 100 CV, 74 kw 4cil. ZLT00A 1 Bastidores: ZLT00A henceforth00001-ZLT00A henceforth14000 1987
Kawasaki ZL 1000 A Eliminator 100 CV, 74 kw 4cil. ZLT00A 2 Bastidores: ZLT00A henceforth01401-ZLT00A-999999 1988
Kawasaki ZL 900 A Eliminator 105 CV, 77 kw 4cil. - 1 Bastidores: --- 1985
Kawasaki ZL 900 A Eliminator 105 CV, 77 kw 4cil. - 2 Bastidores: --- 1986
Moto Guzzi California 1000 II 67 CV, 49 kw 2cil. VT Bastidores: VT 11111-VT 20479 1982-1986
Moto Guzzi California 1000 III 67 CV, 49 kw 2cil. VW Bastidores: VW 11111-VW 17350 1987-1993
Moto Guzzi California 1000 III Carenato carenado 67 CV, 49 kw 2cil. VY Bastidores: --- 1988-1990
Moto Guzzi California 1000 III ie 71 CV, 52 kw 2cil. VY Bastidores: VY11111-VY 11450 1990-1993
Moto Guzzi Le Mans 1000 81 CV, 60 kw 2cil. VV Bastidores: VV 11111-- 1984-1986
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16984 1992
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16994 1989-1989
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16994 1991-1991
Moto Guzzi Le Mans 1000 CI 81 CV, 60 kw 2cil. VV Bastidores: VV 16350-VV 16994 1993-1993
Moto Guzzi Le Mans 1000 Rueda delantera 18 pulgadas 81 CV, 60 kw 2cil. VV Bastidores: VV 14000-VV 16349 1987-1988
Moto Guzzi Le Mans 850 III 76 CV, 56 kw 2cil. VF Bastidores: VF 11111-VF 20700 1981-1984
Moto Guzzi Mille 1000 GT 67 CV, 49 kw 2cil. VH Bastidores: VH 30000-VH 34685 1987-1990
Moto Guzzi Mille 1000 GT 71 CV, 52 kw 2cil. VH Bastidores: VH 30000-VH 34685 1991-1994
Moto Guzzi SP 1000 I 61 CV, 45 kw 2cil. VG Bastidores: VG 18781-VG 25693 1978-1983
Moto Guzzi SP 1000 II 67 CV, 49 kw 2cil. VH Bastidores: VH 11111-VH 12229 1984-1987
Moto Guzzi SP 1000 III 71 CV, 52 kw 2cil. VN Bastidores: VN 11111-VN 11901 1988-1996
Moto Guzzi V50 500 Custom 49 CV, 36 kw 2cil. PM500 Bastidores: PM 11111-PM 12530 1982-1986
Moto Guzzi V65 650 Lario 60 CV, 44 kw 2cil. PT Bastidores: PT 11111-PT 15032 1984-1989
