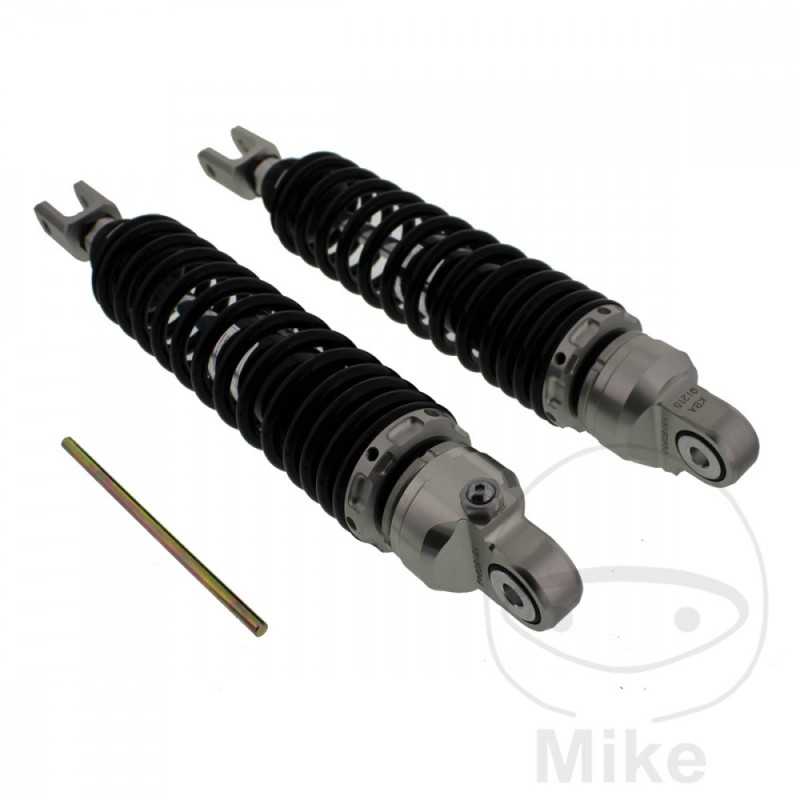

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.30

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
Length: 370mm
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K4 Bastidores: BU1321 henceforth0100001-BU1321 henceforth0105118 2004
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K5 Bastidores: BU1321 henceforth0105119-BU1321 henceforth0110445 2005
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K6 Bastidores: BU1321 henceforth0110454-BU1321 henceforth0117024 2006
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K7 Bastidores: BU1321 henceforth0117025-BU1321 henceforth0122999 2007
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K8 Bastidores: BU1321 henceforth0123000-BU1321 henceforth0129694 2008
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 K9 Bastidores: BU1321 henceforth0129695-BU1321 henceforth0133404 2009
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 L0 Bastidores: BU1321 henceforth0133405-BU1321 henceforth0136754 2010
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 L1 Bastidores: BU1321 henceforth0136755-BU1321 henceforth0139747 2011
Suzuki AN 650 A Burgman Executive ABS 56 CV, 41 kw 2cil. WVBU1321 L2 Bastidores: BU1321 henceforth0139748-- 2012
Suzuki AN 650 Burgman 50 CV, 37 kw 2cil. WVBU1111 K3 Bastidores: BU1111 henceforth0100001-BU1111 henceforth0110495 2002-2003
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K4 Bastidores: BU1111 henceforth0110496-BU1111 henceforth0113618 2004
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K5 Bastidores: BU1111 henceforth0113619-BU1111 henceforth0113704 2005
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K6 Bastidores: BU1111 henceforth0113705-BU1111 henceforth0114139 2006
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K7 Bastidores: BU1111 henceforth0114140-BU1111 henceforth0114831 2007
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K8 Bastidores: BU1111 henceforth0114832-BU1111 henceforth0115219 2008
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 K9 Bastidores: BU1111 henceforth0115220-BU1111 henceforth0115723 2009
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 L0 Bastidores: BU1111 henceforth0115724-BU1111 henceforth0115803 2010
Suzuki AN 650 Burgman 56 CV, 41 kw 2cil. WVBU1111 L1 Bastidores: BU1111 henceforth0115804-BU1111 henceforth0115828 2011
Suzuki AN 650 L Burgman Executive 56 CV, 41 kw 2cil. WVBU1114 K3 Bastidores: BU1114 henceforth0100001-- 2003
