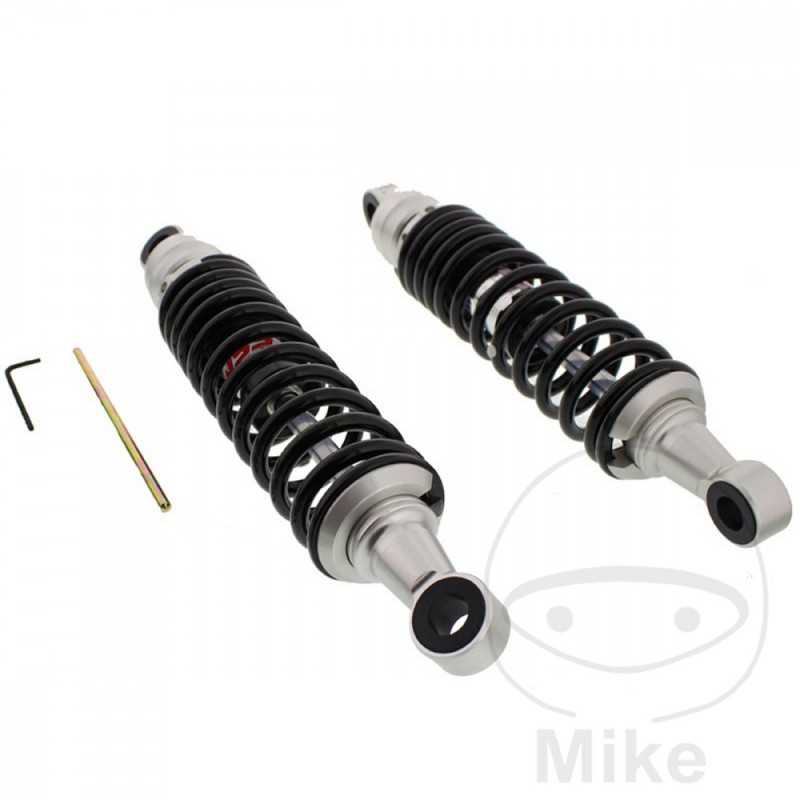

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.29

Milled aluminum body, spring preload adjustable spring strut.

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 320MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 17-25
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 F Bastidores: PC15-6000001-PC15-6002535 1985
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 G Bastidores: PC15-6100001-PC15-6101702 1986
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-6200001-PC15-6200100 1987
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 F Bastidores: PC15-5000025-PC15-5001841 1985
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 G Bastidores: PC15-5100001-PC15-5101643 1986
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-5200005-PC15-5201600 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-8000002-PC15-8000201 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 J Bastidores: PC15-8100003-- 1988-1989
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-7000005-PC15-7000940 1987
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 J Bastidores: PC15-7100005-- 1988-1989
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250B 3 Bastidores: EL250B henceforth55001-EL250B henceforth60000 1997-1998
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250BFA 4 Bastidores: EL250BFA henceforth60001-EL250BFA-999999 1999-2000
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250BFA 5 Bastidores: EL250BFA henceforth63001-EL250BFA-999999 2001-2002
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250BFA 6 Bastidores: EL250BFA henceforth66001-EL250BFA-999999 2003
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250F 2 Bastidores: EL250F henceforth00001-EL250F-999999 1996
Yamaha XJR 400 53,7 CV, 39,5 kw 4cil. 4HM 4HM1 Bastidores: 4HM henceforth00101-- 1993-1994
Yamaha XJR 400 53,7 CV, 39,5 kw 4cil. 4HM 4HM4 Bastidores: 4HM henceforth75101-4HM henceforth87999 1995
Yamaha XJR 400 R 53,7 CV, 39,5 kw 4cil. 4HM 4HM3 Bastidores: 4HM henceforth50101-4HM henceforth74999 1995
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-450101-447-455000 1980
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-460101-447-470000 1981-1983
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-600101-- 1977-1978
Yamaha XS 650 50 CV, 37 kw 2cil. 447 1U3 Bastidores: 447-855101-447-860000 1979
Yamaha XS 650 50 CV, 37 kw 2cil. 447 447 Bastidores: 447-100101-- 1975-1976
