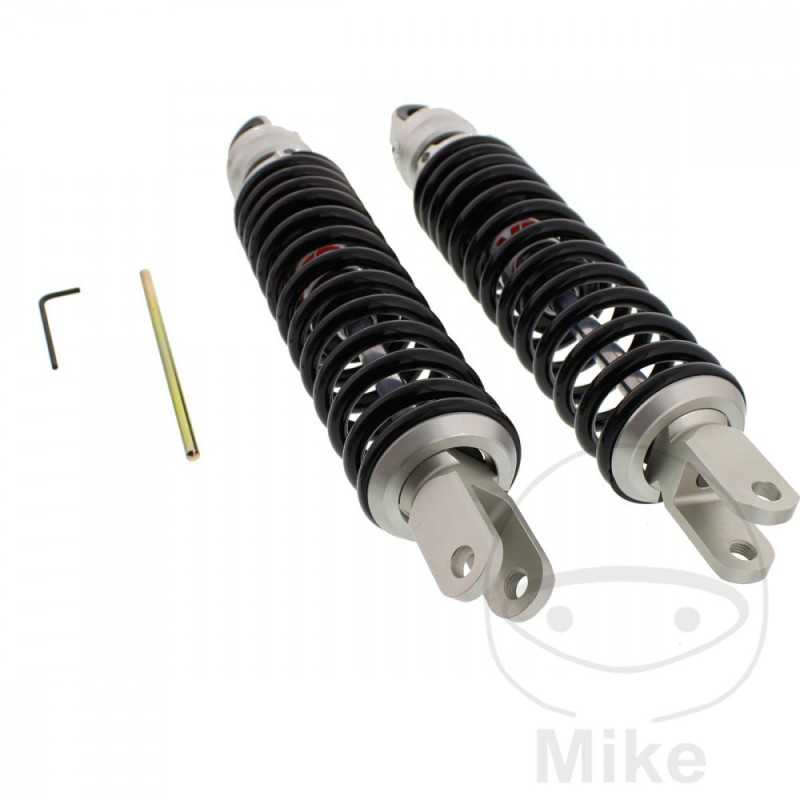

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.28

Milled aluminum body, spring preload adjustable spring strut

The spring preload is locked by a threaded pin.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 335MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 220 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 30 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda GL 1000 K Goldwing 78 CV, 57 kw 4cil. GL2 3 Bastidores: GL2-4052792-GL2-4060876 1978
Honda GL 1000 K Goldwing 82 CV, 60 kw 4cil. GL1 1 Bastidores: GL1-2000002-GL1-2041275 1976
Honda GL 1000 K Goldwing 82 CV, 60 kw 4cil. GL1 2 Bastidores: GL1-3010003-GL1-3026655 1977
Honda GL 1000 LTD Goldwing 82 CV, 60 kw 4cil. GL1 Bastidores: GL1-2037067-GL1-2038362 1976
Honda GL 1000 Z Goldwing 78 CV, 57 kw 4cil. GL2 Bastidores: GL2-4113174-GL2-4117645 1979
