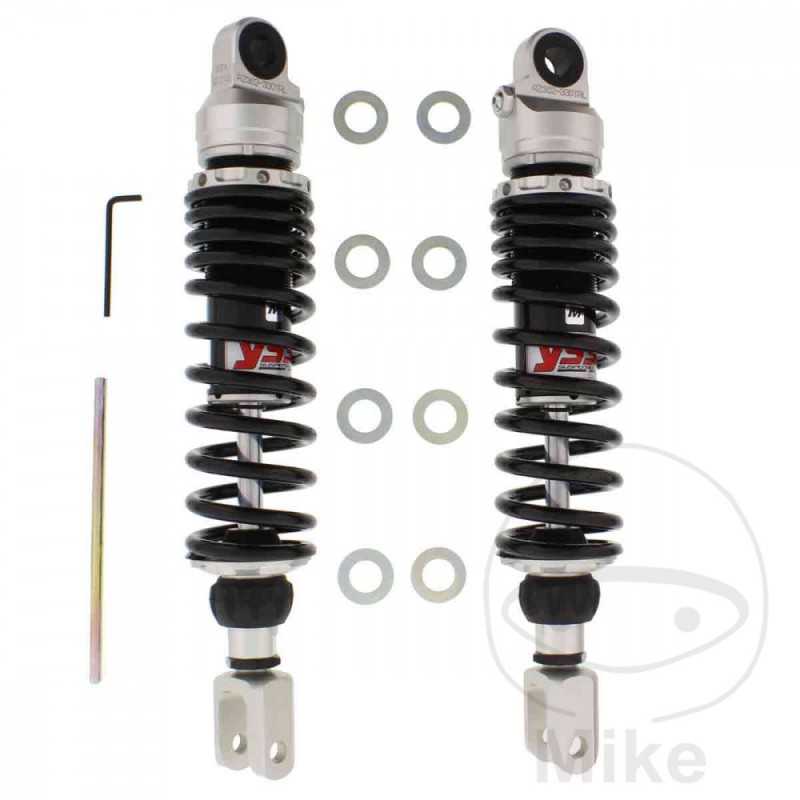

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.21

Milled aluminum body, adjustable spring preload and rebound suspension strut (30 clicks).

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm.

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 16 MM
LENGTH: 330MM
LOWER FIXING: FORK
FORK WIDTH: 20 MM
ADJUSTMENTS: VARIABLE SPRING PRELOAD
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 180 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: NO
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 750 K Four 63 CV, 46 kw 4cil. CB750 6 Bastidores: CB750-2550437-CB750-2586393 1976
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 0 Bastidores: CB750-1005084-CB750-1099999 1969-1970
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 1 Bastidores: CB750-1053409-CB750-1199999 1970-1971
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750 2 Bastidores: CB750-2005737-CB750-2199999 1972-1975
Honda CB 750 K Four 67 CV, 49 kw 4cil. CB750K 7 Bastidores: CB750K-2719935-CB750K-2799999 1977-1978
