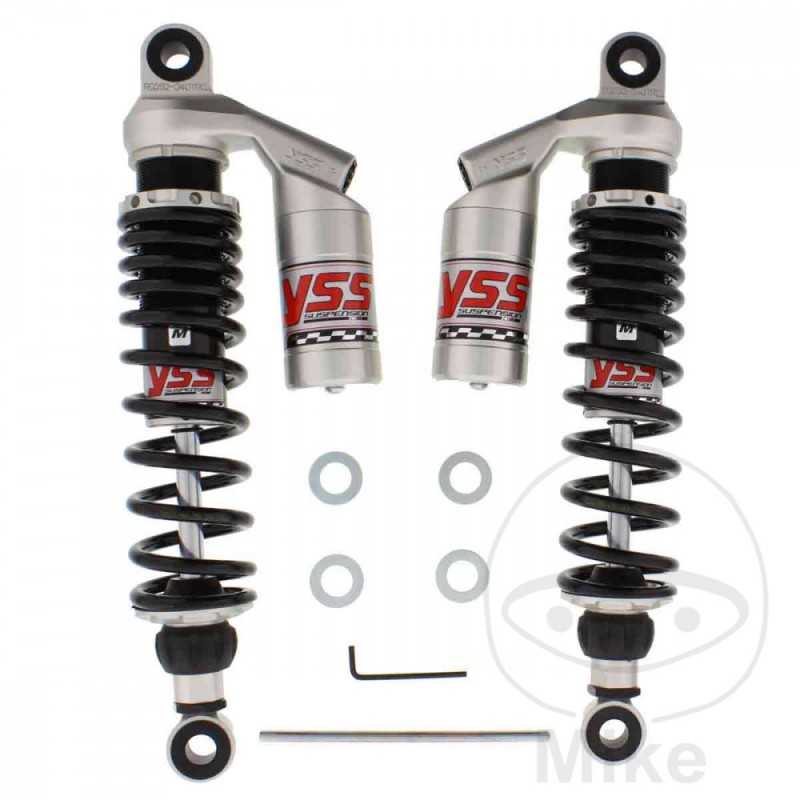

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.14

Milled aluminum body, adjustable spring preload, rebound (30 clicks) and compression (30 clicks) strut.

The spring preload is locked by a threaded pin.

The length of the damper is adjustable by + -5 mm

The adjustment tool is included in the scope of delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 340MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Moto Guzzi California 1000 III 67 CV, 49 kw 2cil. VW Bastidores: VW 11111-VW 17350 1987-1993
Moto Guzzi California 1000 III Carenato carenado 67 CV, 49 kw 2cil. VY Bastidores: --- 1988-1990
Moto Guzzi Le Mans 850 III 76 CV, 56 kw 2cil. VF Bastidores: VF 11111-VF 20700 1981-1984
Moto Guzzi Mille 1000 GT 67 CV, 49 kw 2cil. VH Bastidores: VH 30000-VH 34685 1987-1990
Moto Guzzi Mille 1000 GT 71 CV, 52 kw 2cil. VH Bastidores: VH 30000-VH 34685 1991-1994
Moto Guzzi SP 1000 II 67 CV, 49 kw 2cil. VH Bastidores: VH 11111-VH 12229 1984-1987
Moto Guzzi SP 1000 III 71 CV, 52 kw 2cil. VN Bastidores: VN 11111-VN 11901 1988-1996
