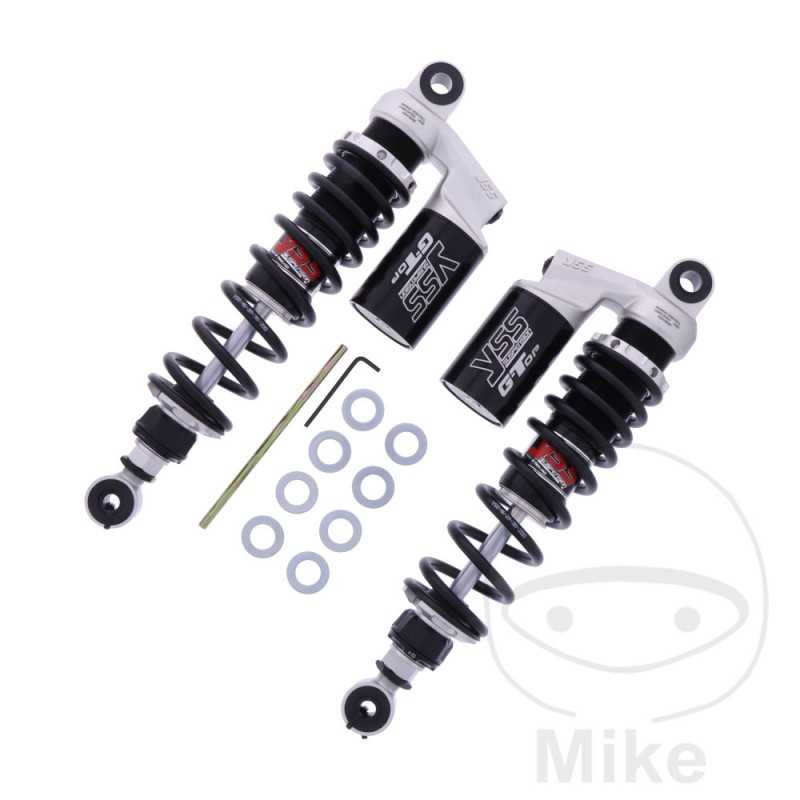

YSS SUSPENSION Adjustable rear double suspension shock absorber 789.03.13

Milled aluminum body, spring strut adjustable for spring preload, rebound (30 clicks) and compression (30 clicks).

The spring preload is locked by means of a grub screw.

The length of the damper is adjustable by +-5mm

The adjustment tool is included in the delivery.
TYPE: GAS PRESSURE
UPPER FIXATION: EYE
INNER EYE DIAMETER: 14 MM
LENGTH: 335MM
LOWER FIXATION: EYE
INNER EYE DIAMETER: 10 MM
SETTINGS: PRESSURE LEVEL
SPRING CHARACTERISTIC: 20-30
SPRING LENGTH: 200 MM
SPRING DIAMETER: 46 MM
COMPENSATION DEPOSIT: YES
PISTON DIAMETER: 36 MM
PISTON ROD DIAMETER: 12 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K2 Bastidores: BN1111 henceforth0100001-BN1111 henceforth0107357 2002
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K3 Bastidores: BN1111 henceforth0107358-BN1111 henceforth0110569 2003
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K4 Bastidores: BN1111 henceforth0110570-BN1111 henceforth0112803 2004
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K5 Bastidores: BN1111 henceforth0112804-BN1111 henceforth0114964 2005
Suzuki GSX 1400 106 CV, 78 kw 4cil. WVBN1111 K6 Bastidores: BN1111 henceforth0114965-BN1111 henceforth0117192 2006-2007
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K2 Bastidores: BN2111 henceforth0100001-- 2002
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K3 Bastidores: BN2111 henceforth0100001-- 2003
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K4 Bastidores: BN2111 henceforth0100001-- 2004
Suzuki GSX 1400 U1 98 CV, 72 kw 4cil. WVBN2111 K5 Bastidores: BN2111 henceforth0100001-- 2005
